TOWER EARTH CLAMPS (SINGLE PLATE)
Description
These single-plate tower earth clamps are used for bonding copper and aluminium conductors onto steel surfaces. The clamp is fixed by drilling a hole in the steelwork and securing with the set screw provided.
For use with Bare Solid Circular Copper Conductors

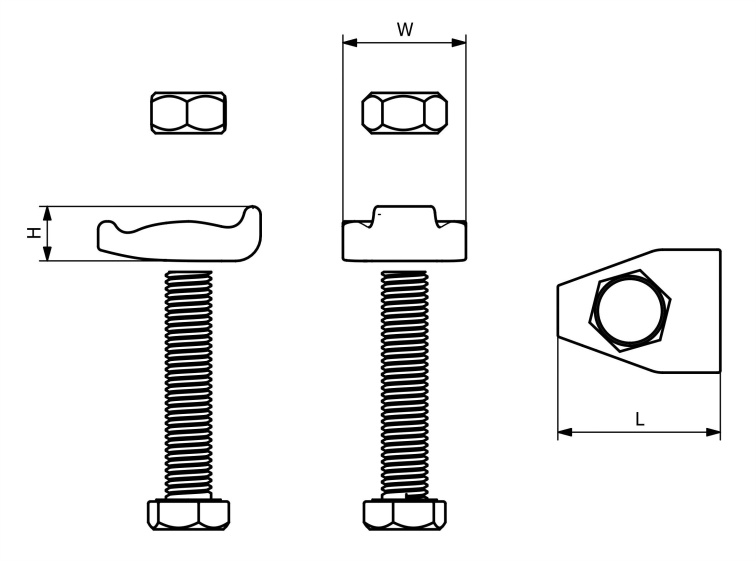

| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Set Screw | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|---|
| 8 | 34 | 23 | 33 | M10 x 50mm | 0.09 | TEC08 |
