RAINWATER PIPE BONDS
Description
This pipe bond can be used on any application where the perforated tape can be wrapped around circular objects such as pipes or rails etc.
For use with Bare Solid Circular Copper Conductors

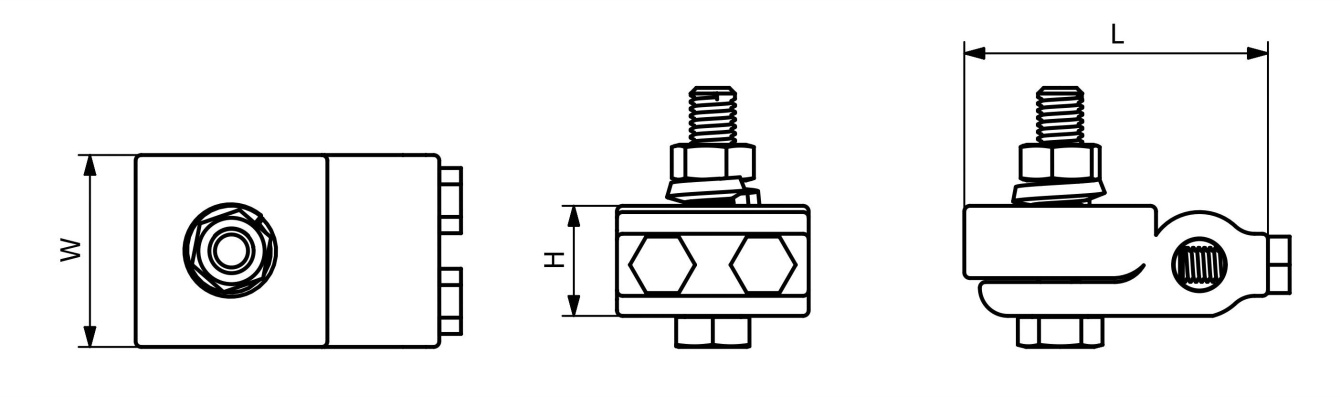

| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 8 | 55 | 32 | 17 | 0.37 | RPC08 |
Material : High Copper Alloy with Perforated Copper Tail
For use with Bare Solid Circular Aluminium Conductors
| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 8 | 51 | 31 | 16 | 0.09 | RPA08 |
Material : Aluminium with Perforated Copper Tail
For use with Bare Stranded Conductors
| Conductor Size (mm)2 | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 70 | 56 | 31 | 18 | 0.33 | RPC070 |
