PUSH-IN-ROOF CONDUCTOR CLIPS

Description

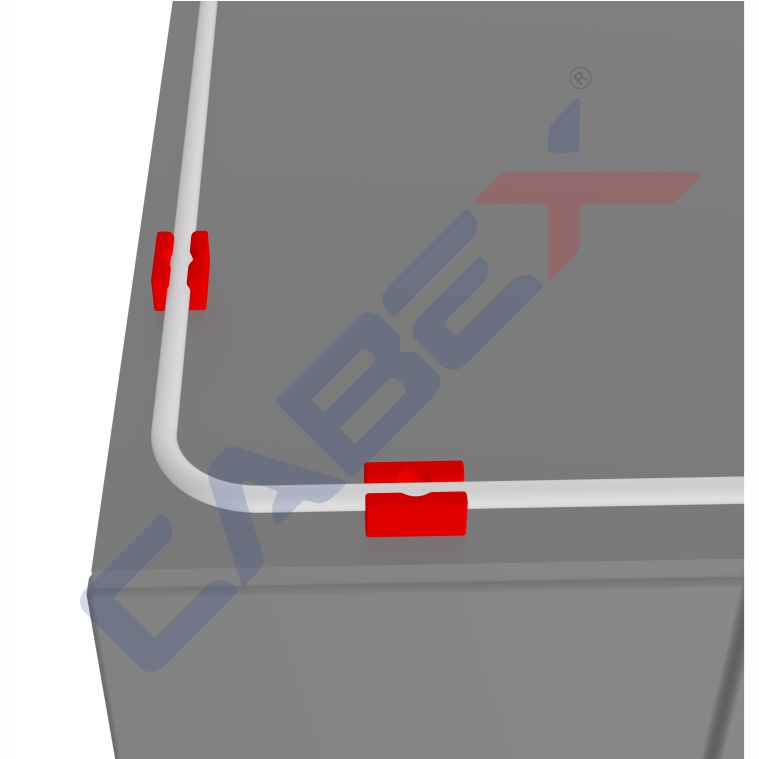

A one-piece fold over clip designed for easy installation of solid circular conductor. The clips are UV stablised to prevent degradation from sunlight & are non-brittle to protect against cold weather.

For use with Bare Solid Circular Conductors

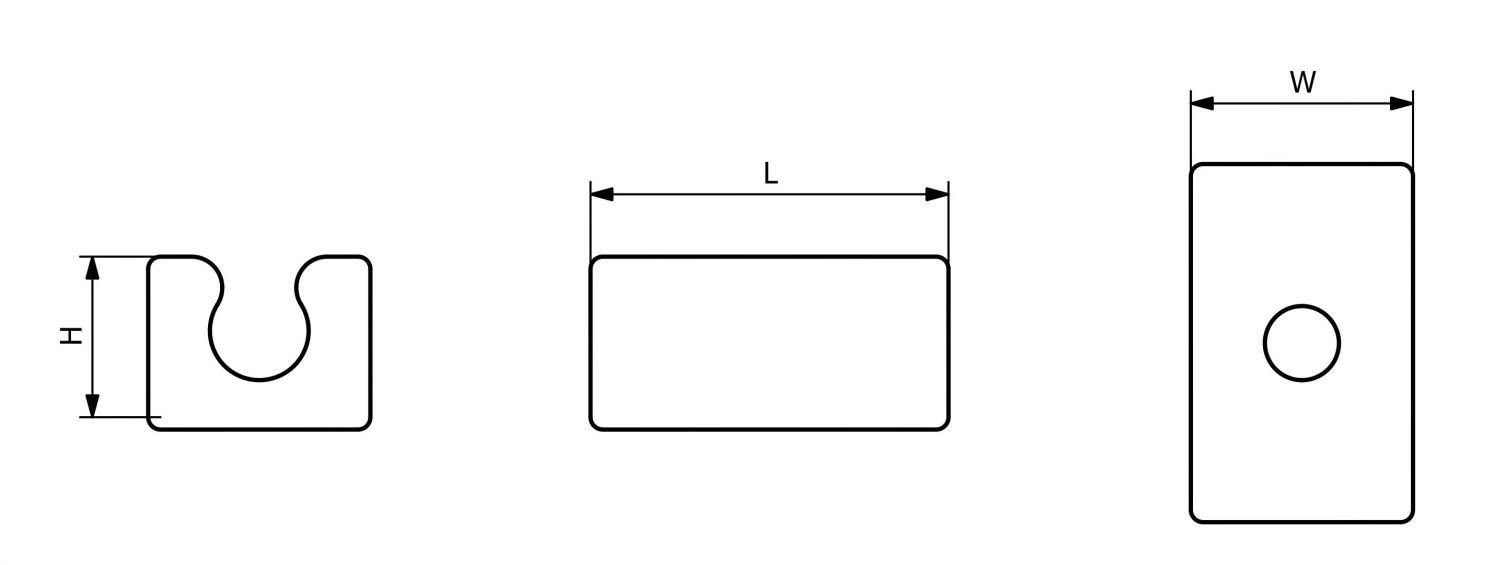

Conductor Size (mm) L (mm) W (mm) H (mm) Clip Colour Unit Weight (Kg) Code
8 29 18 14 BROWN 0.01 PRC08 BN
8 29 18 14 WHITE 0.01 PRC08 WE
8 29 18 14 BLACK 0.01 PRC08 BK
8 29 18 14 GREY 0.01 PRC08 GY
8 29 18 14 GREEN 0.01 PRC08 GN

Material : Polypropylene

For use with PVC Covered Solid Circular Conductors

Conductor Size (mm) L (mm) W (mm) H (mm) Clip Colour Unit Weight (Kg) Code
8 29 18 14 BROWN 0.01 PRC08 BN P
8 29 18 14 WHITE 0.01 PRC08 WE P
8 29 18 14 BLACK 0.01 PRC08 BK P
8 29 18 14 GREY 0.01 PRC08 GY P
8 29 18 14 GREEN 0.01 PRC08 GN P

Material : Polypropylene
