ONE HOLE CABLE CLIPS
Description

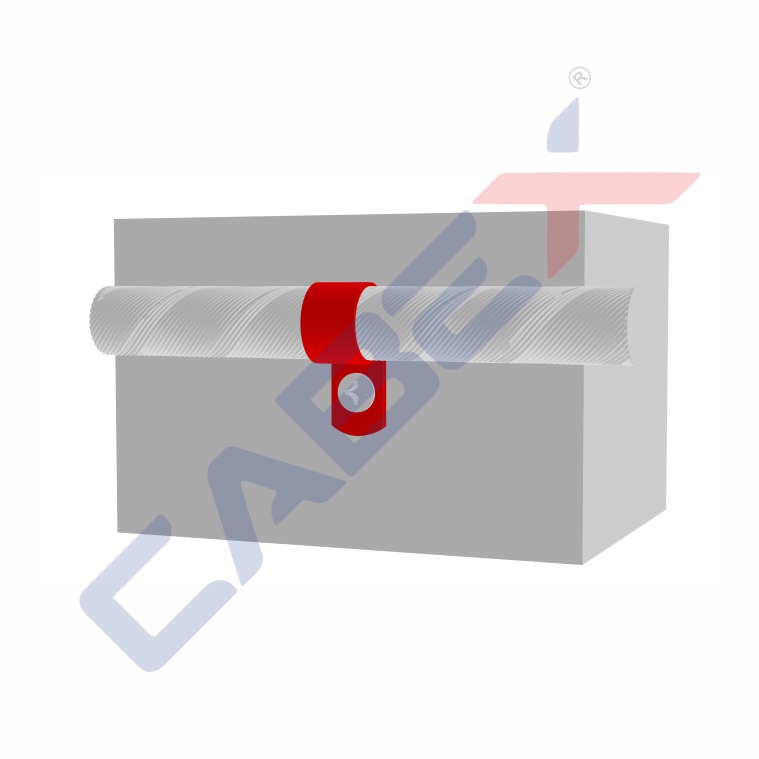

One hole cable clips provide an easy method of fixing stranded copper conductors to surfaces.
For use with Bare Stranded Copper Conductors
| Conductor Size (mm)2 | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 6 | 10 | 10 | 5 | 0.01 | BSCC006 |
| 10 | 10 | 10 | 5 | 0.01 | BSCC010 |
| 16 | 15 | 10 | 5 | 0.01 | BSCC016 |
| 25 | 15 | 10 | 8 | 0.01 | BSCC025 |
| 35 | 18 | 10 | 8 | 0.01 | BSCC035 |
| 50 | 18 | 10 | 10 | 0.01 | BSCC050 |
| 70 | 22 | 10 | 10 | 0.01 | BSCC070 |
| 95 | 22 | 10 | 13 | 0.01 | BSCC095 |
| 120 | 25 | 15 | 15 | 0.01 | BSCC120 |
| 150 | 25 | 15 | 15 | 0.02 | BSCC150 |
| 185 | 30 | 15 | 20 | 0.02 | BSCC185 |
| 240 | 30 | 20 | 20 | 0.02 | BSCC240 |
| 300 | 35 | 20 | 25 | 0.02 | BSCC300 |
Material : Copper
For use with PVC Insulated Stranded Copper Conductors
| Conductor Size (mm)2 | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 6 | 10 | 10 | 5 | 0.01 | PSCC006 |
| 10 | 10 | 10 | 7 | 0.01 | PSCC010 |
| 16 | 15 | 10 | 7 | 0.01 | PSCC016 |
| 25 | 15 | 10 | 10 | 0.01 | PSCC025 |
| 35 | 18 | 10 | 10 | 0.01 | PSCC035 |
| 50 | 18 | 10 | 15 | 0.01 | PSCC050 |
| 70 | 22 | 10 | 15 | 0.01 | PSCC070 |
| 95 | 22 | 10 | 15 | 0.01 | PSCC095 |
| 120 | 25 | 15 | 20 | 0.01 | PSCC120 |
| 150 | 25 | 15 | 20 | 0.02 | PSCC150 |
| 185 | 30 | 15 | 25 | 0.02 | PSCC185 |
| 240 | 30 | 20 | 25 | 0.02 | PSCC240 |
| 300 | 35 | 20 | 30 | 0.02 | PSCC300 |
