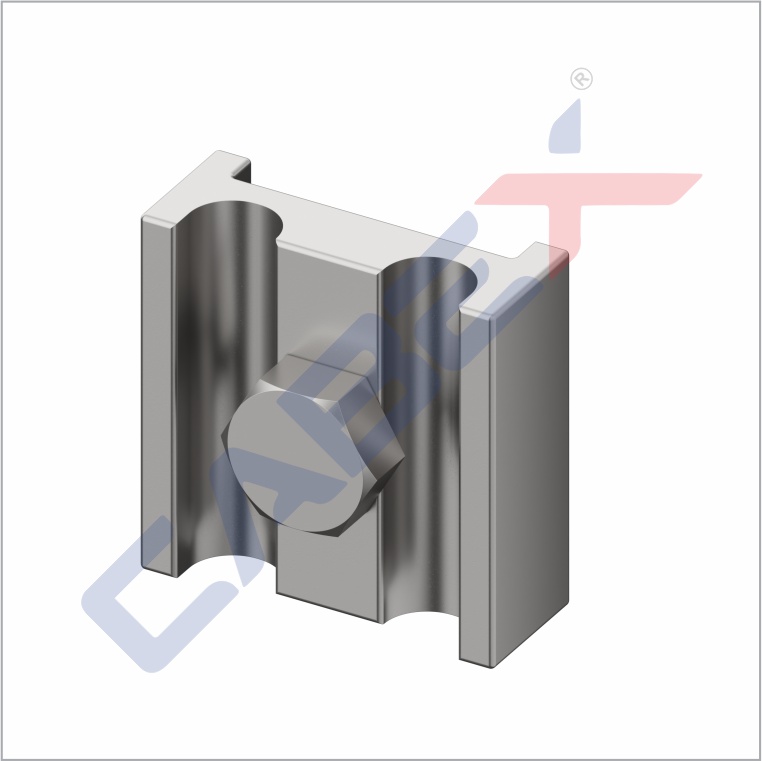

MULTI-PURPOSE B BONDS
Description

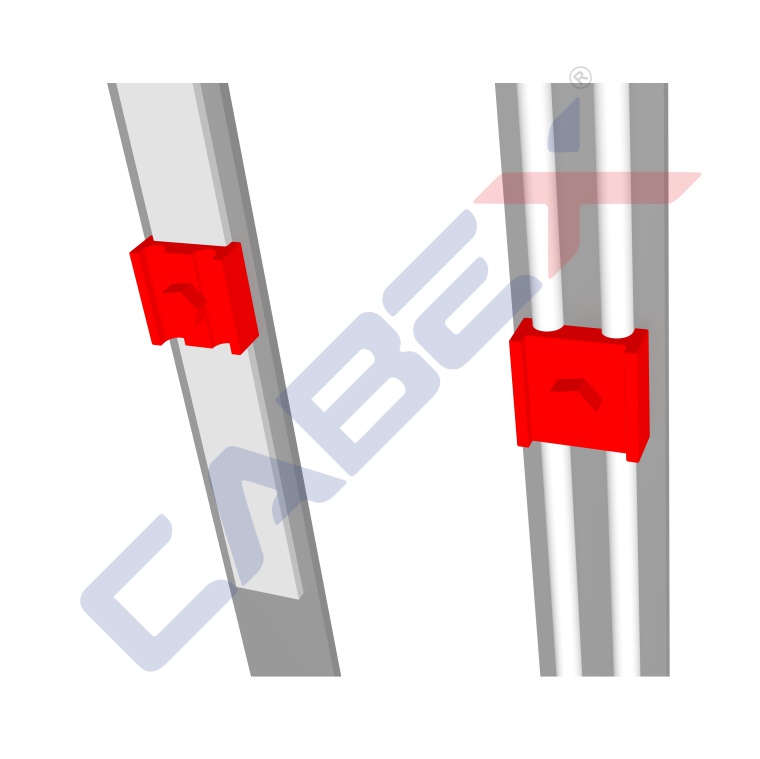

This bond is used for bonding 8mm solid circular conductors to flat metal surfaces.
For use with Bare Solid Circular Copper Conductors

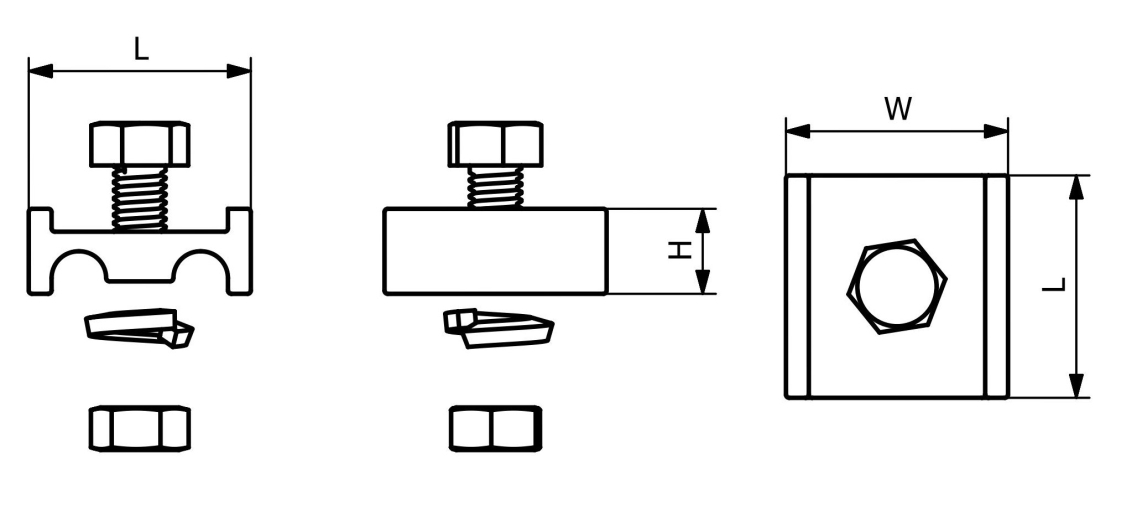

| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Set Screw | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|---|
| 8 & 25 x 3 | 34 | 34 | 13 | M8 x 25mm | 0.09 | BBC25308 |
Material : High Copper Alloy
For use with Bare Solid Circular Aluminium Conductors
| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Set Screw | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|---|
| 8 & 25 x 3 | 34 | 34 | 13 | M8 x 25mm | 0.04 | BBA25308 |
