MULTI PURPOSE AIR ROD SADDLES
Description

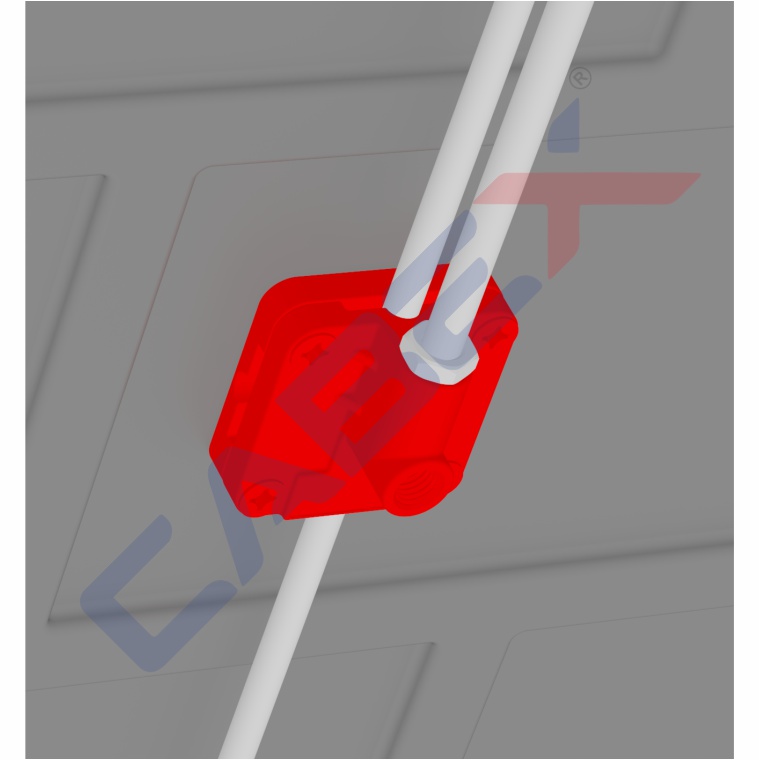

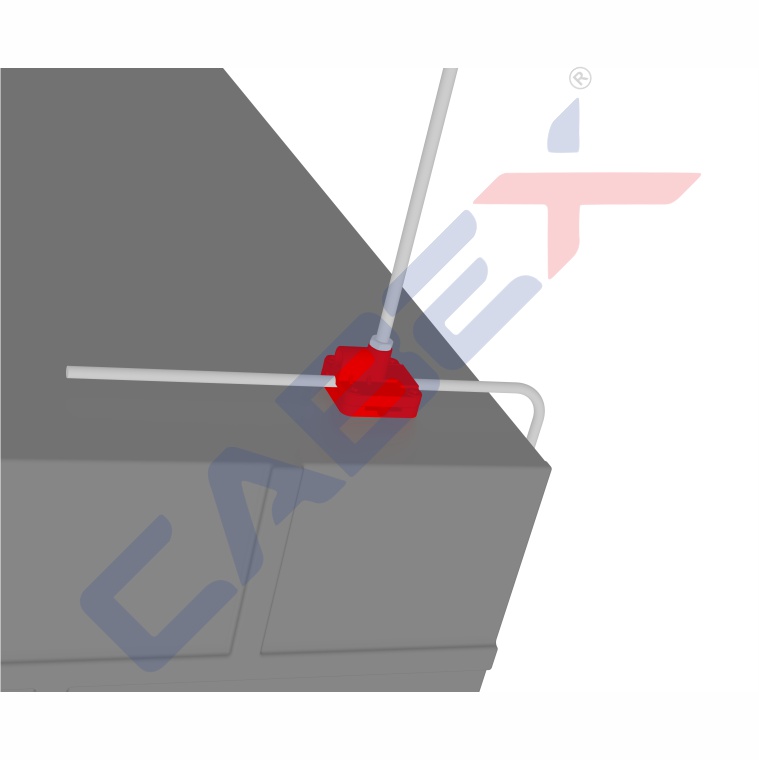

As per the name Multi-Purpose Air Rod Saddles are suitable for use with 8mm diameter solid circular conductor as well as 25 x 3mm flat tape. These saddles can be installed horizonatally on roofs or vertically on walls & are used in conjuction with the air rods.
For use with Copper Air Rods

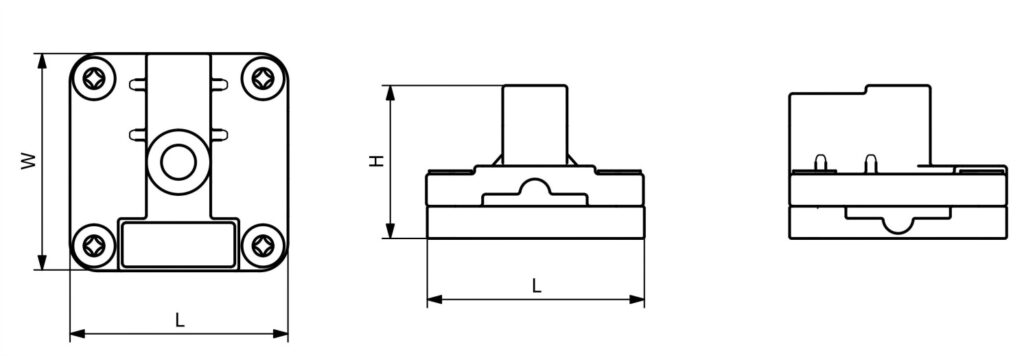

| Thread Size | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| M10 | 54 | 54 | 38 | 0.30 | MPSC2503 |
Material : High Copper Alloy
For use with Aluminium Air Rods
| Thread Size | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| M10 | 54 | 54 | 38 | 0.10 | MPSA2503 |
