METALLIC CONDUCTOR CLIPS
Description

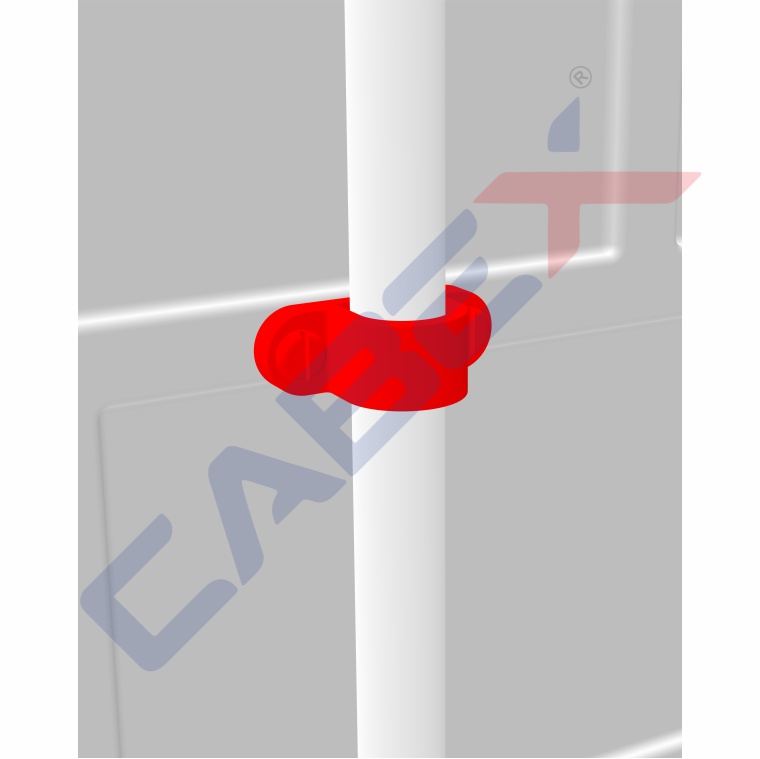

Metallic conductor clips secure the solid circular conductor to the building surface.
For use with Solid Circular Copper Conductors

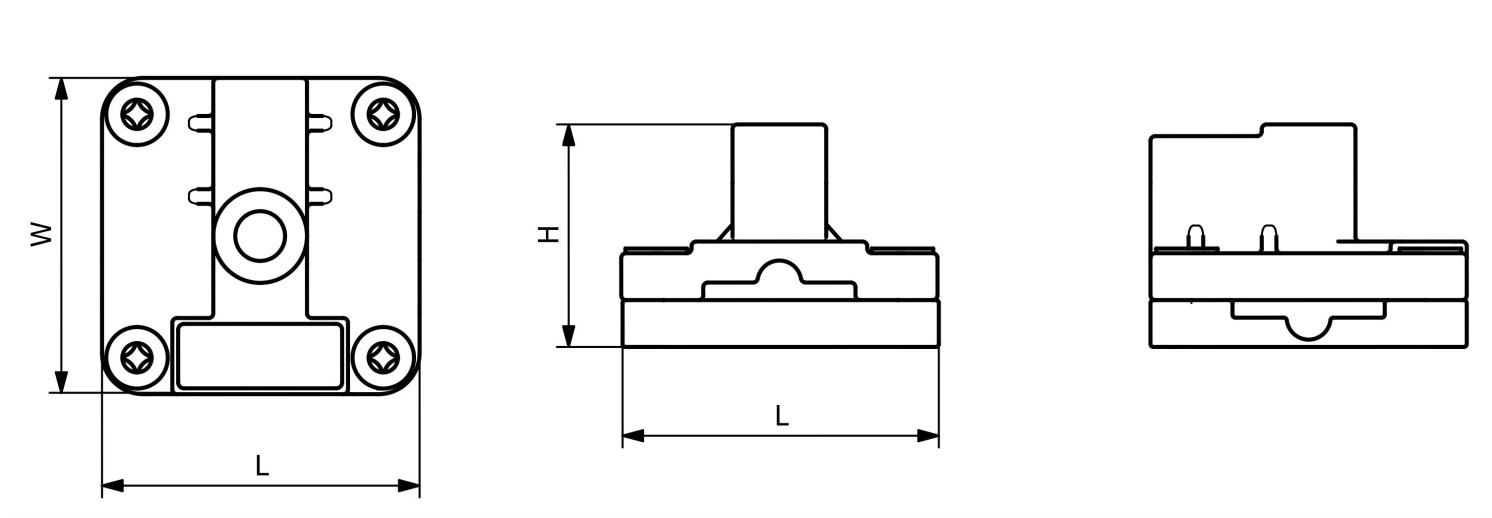

| Conductor Size & Type | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 8mm Bare | 48 | 17 | 20 | 0.06 | HDCC08 |
| 8mm PVC | 48 | 17 | 20 | 0.06 | HDCC08 P |
Material : High Copper Alloy
For use with Solid Circular Aluminium Conductors
| Conductor Size & Type | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 8mm Bare | 48 | 17 | 20 | 0.03 | HDCA08 |
| 8mm PVC | 48 | 17 | 20 | 0.03 | HDCA08 P |
