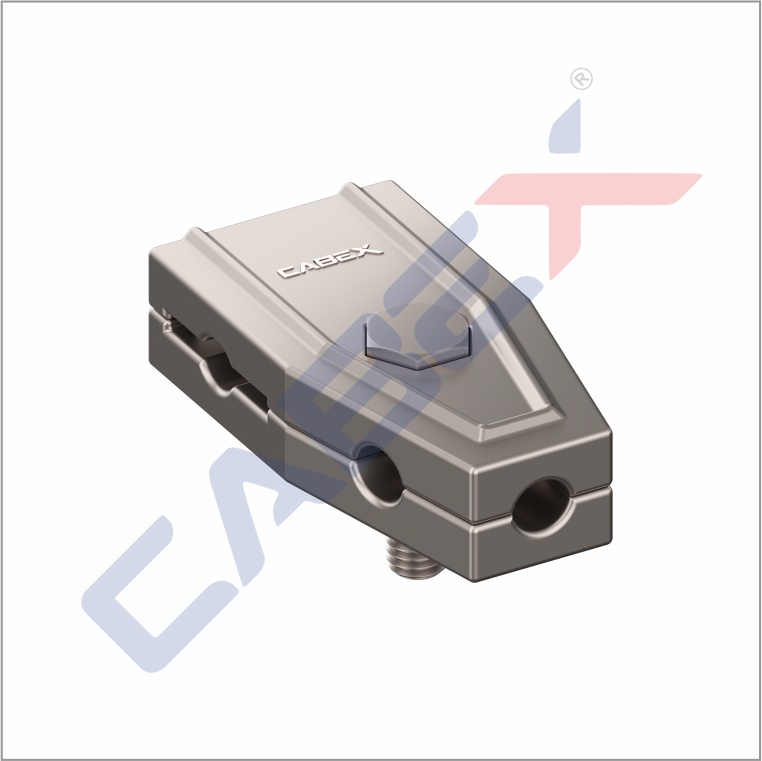

INTERFACE TEST CLAMPS
Description

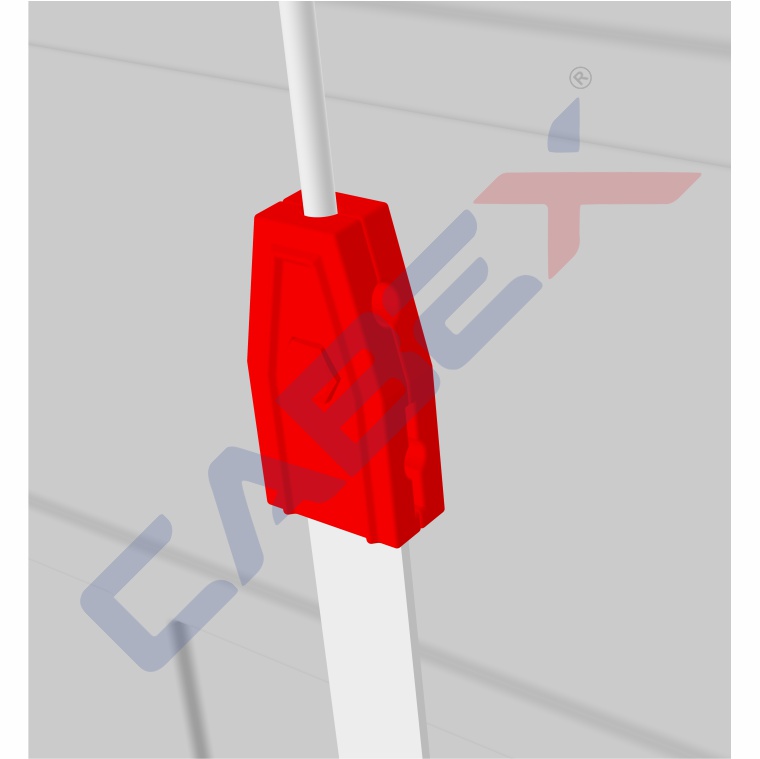

This clamps sometimes referred to as the “Coffin Clamp” is very adaptable and can be utilised to connect conductors in a variety of different sizes and in a variety of configurations. These clamps also serve for making through joints and tee connections in solid circular conductor, flat tape or cable.
For use with Bare Solid Circular Copper Conductors

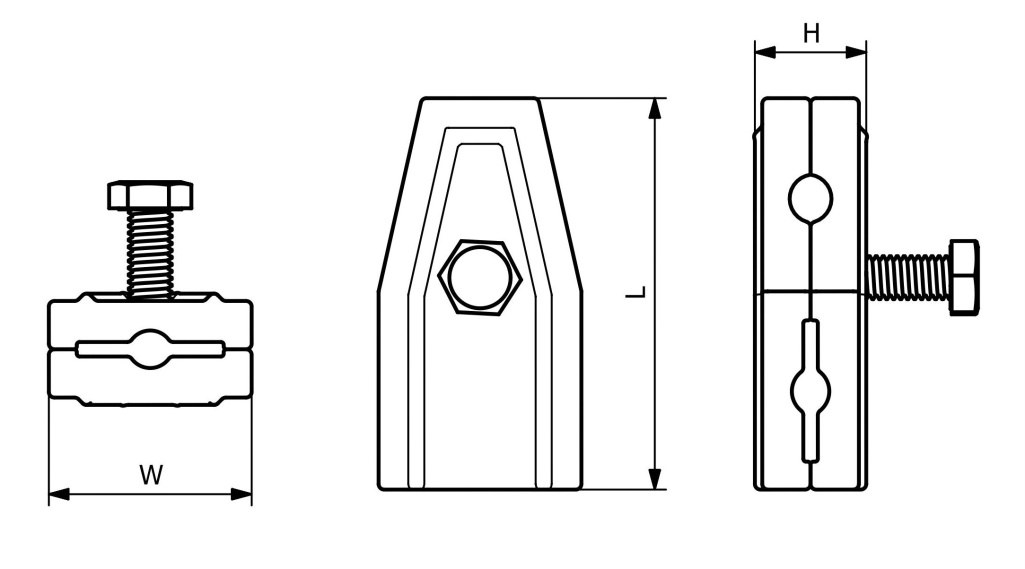

| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 8 & 25 x 3 | 70 | 34 | 15 | 0.25 | ITC08 |
| 10 & 25 x 3 | 70 | 36 | 18 | 0.25 | ITC10 |
Material : High Copper Alloy
For use with Bare Solid Circular Aluminium Conductors
| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 8 & 25 x 3 | 70 | 34 | 15 | 0.09 | ITA08 |
| 10 & 25 x 3 | 70 | 36 | 18 | 0.09 | ITA10 |
