CIRCULAR B BONDS
Description
This bond is used for bonding 8mm solid circular conductors to flat metal surfaces.
For use with Bare Solid Circular Copper Conductors

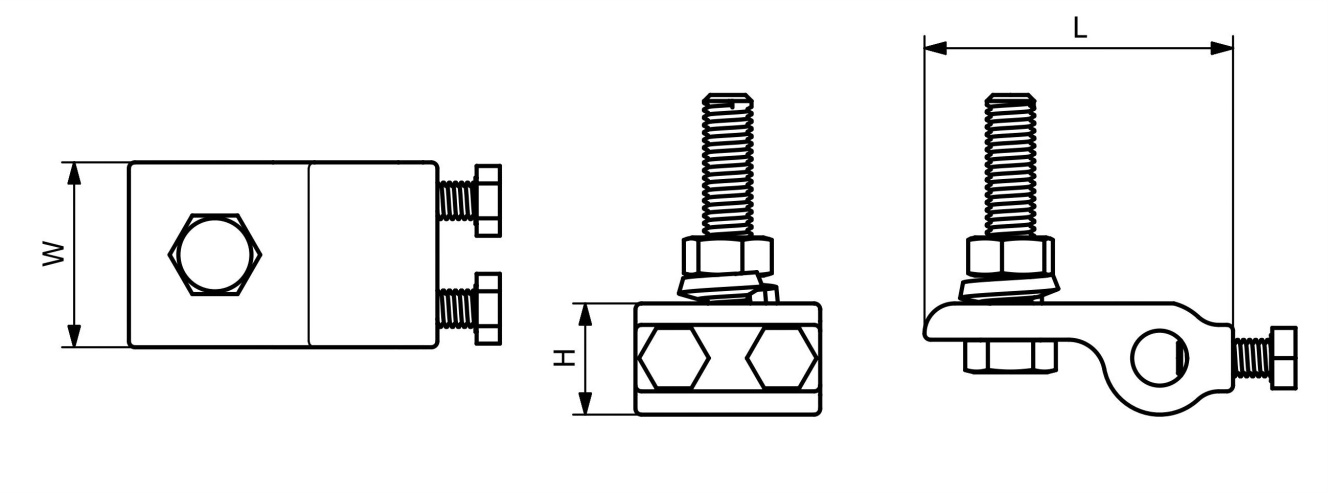

| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 8 | 52 | 33 | 18 | 0.14 | BBC08 |
Material : High Copper Alloy
For use with Bare Solid Circular Aluminium Conductors
| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 8 | 52 | 33 | 18 | 0.09 | BBA08 |
