CABLE TO TAPE CONNECTORS
Description
This 4-way connector is suitable for crossing over flat copper tape and bare stranded copper cable. It will also serve for making straight through joints and tee connections.

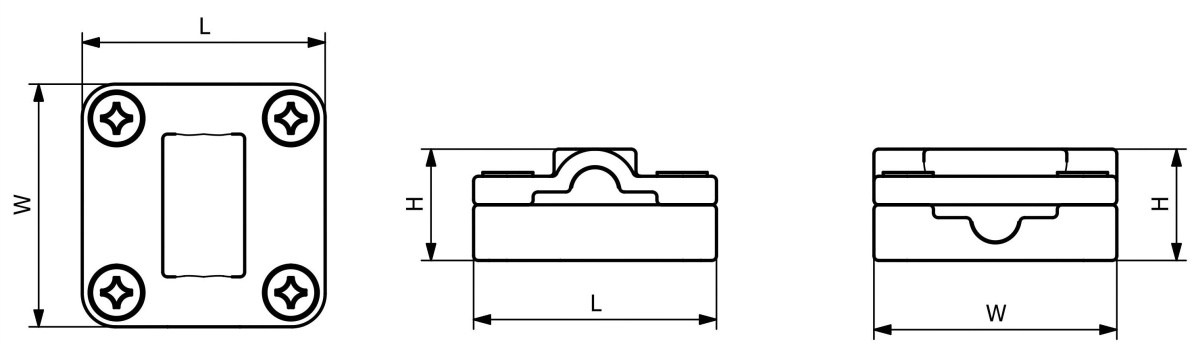

| Cable Size (mm)2 | Tape Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|---|
| 50 | 25 x 3 | 51 | 51 | 25 | 0.27 | CTC25050 |
| 70 | 25 x 3 | 51 | 51 | 31 | 0.30 | CTC25070 |
| 95 | 25 x 3 | 51 | 51 | 34 | 0.31 | CTC25095 |
| 120 | 25 x 3 | 51 | 51 | 37 | 0.34 | CTC25120 |
| 240 | 25 x 3 | 51 | 51 | 42 | 0.37 | CTC25240 |
| 300 | 50 x 6 | 78 | 78 | 54 | 0.65 | CTC50300 |
