WATERMAIN PIPE BOND

Description

Designed to bond large diameter metallic pipes into the earthing and lightning protection systems.



For use with Bare Copper Tapes

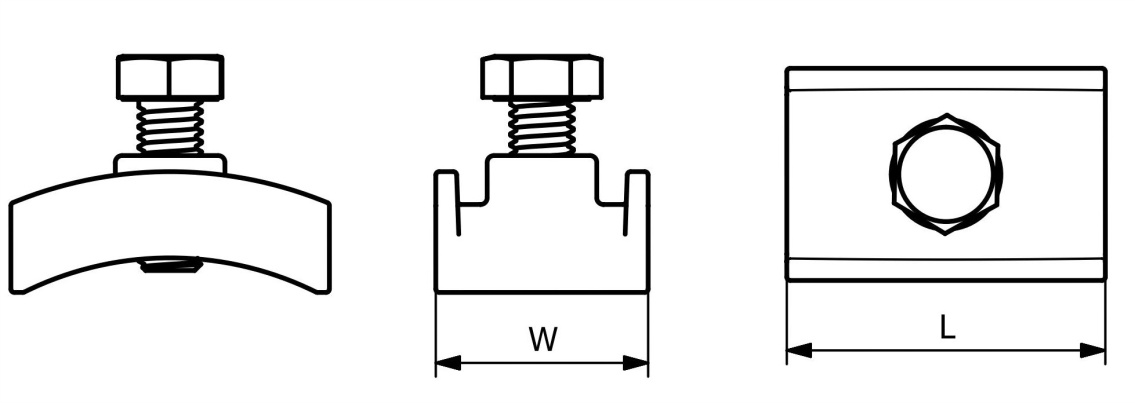

Maximum Conductor Width (mm) L (mm) W (mm) Unit Weight (Kg) Code
26 45 36 0.21 WPB2503

Material : High Copper Alloy with M10 x 35mm Phospher Bronze Set Screw

  BS EN 62561-1-Class H
