ROD TO TAPE COUPLINGS
Description
These Air Rod Brackets are used in conjunction with the rod to tape coupling used to secure that flat tape to air rod.
For use with Copper Air Rods

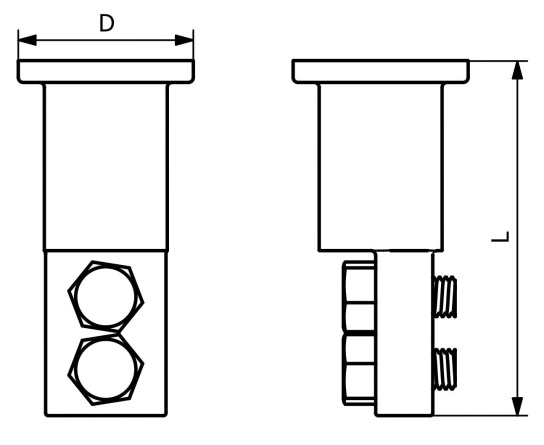

| Thread Size | L (mm) | D (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|
| M16 | 80 | 40 | 0.22 | RTCC16 |
| M20 | 80 | 40 | 0.22 | RTCC20 |
Material : High Copper Alloy
For use with Aluminium Air Rods
| Thread Size | L (mm) | D (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|
| M16 | 80 | 40 | 0.10 | RTCA16 |
