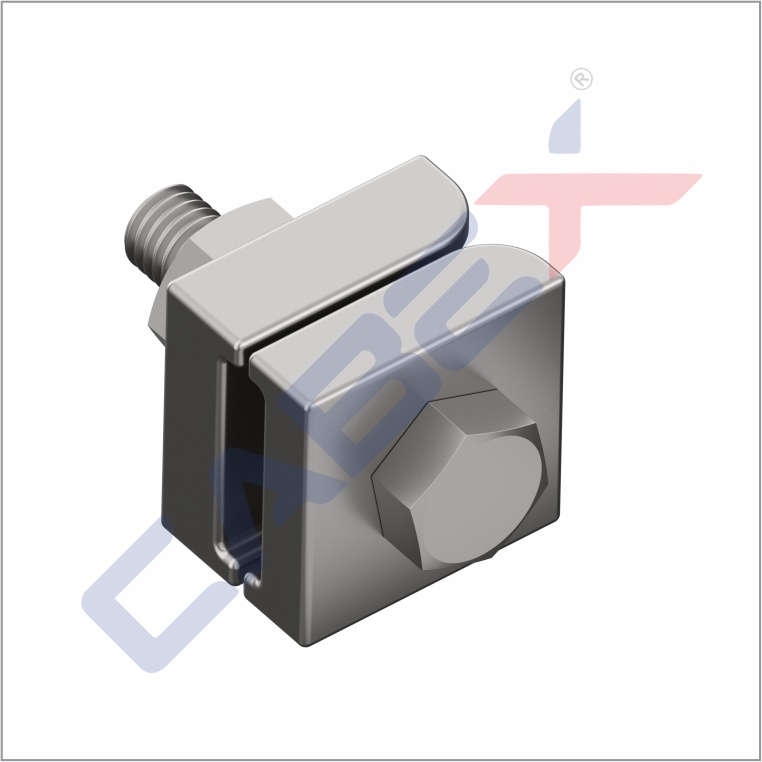

RAINWATER PIPE BOND
Description

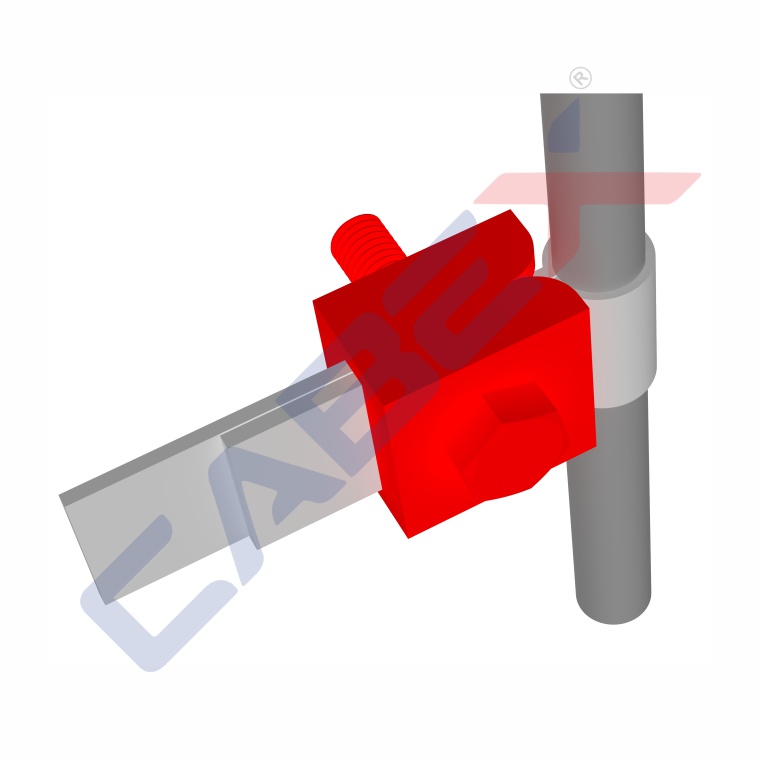

This pipe bond can be used on any application where tape can be wrapped around circular objects such as pipes or rails.
For use with Bare Copper Tapes

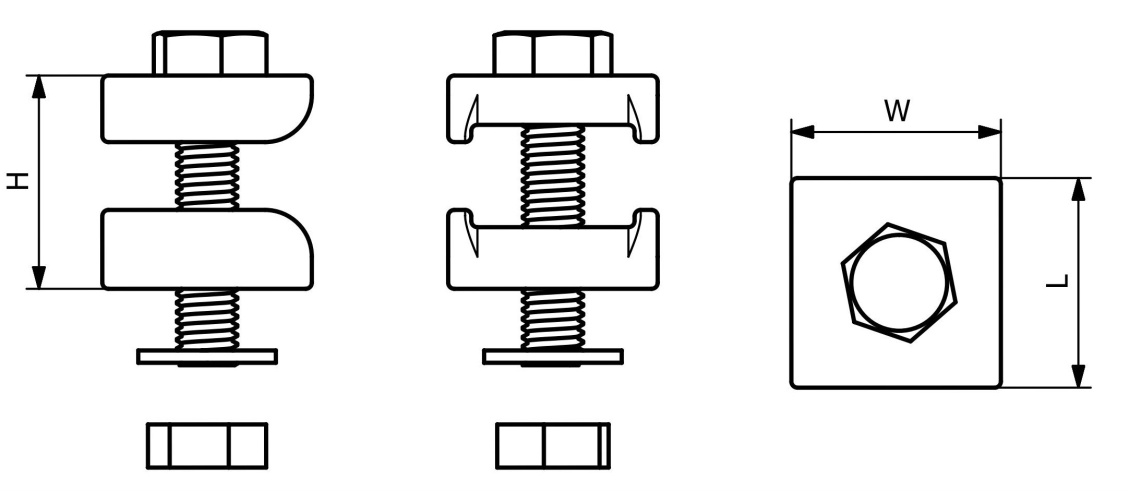

| Maximum Conductor Width (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 26 | 32 | 32 | 16 | 0.20 | RPB2503 |
Material : High Copper Alloy with M10 x 40mm Stainless Steel Set Screw
For use with Bare Aluminium Tapes
| Maximum Conductor Width (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 26 | 32 | 32 | 16 | 0.10 | RPA2503 |
