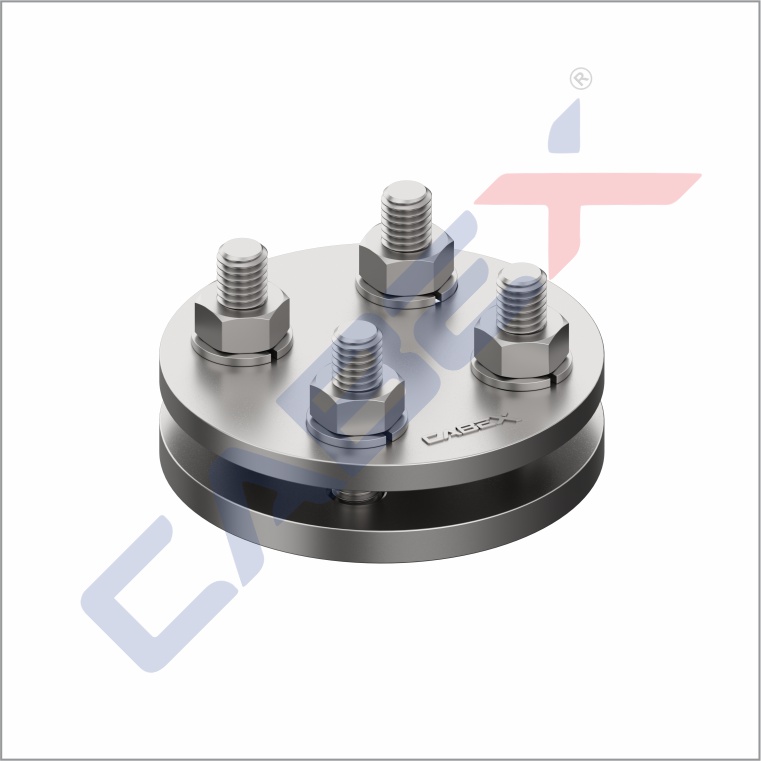

PLATE TYPE TEST CLAMPS
Description

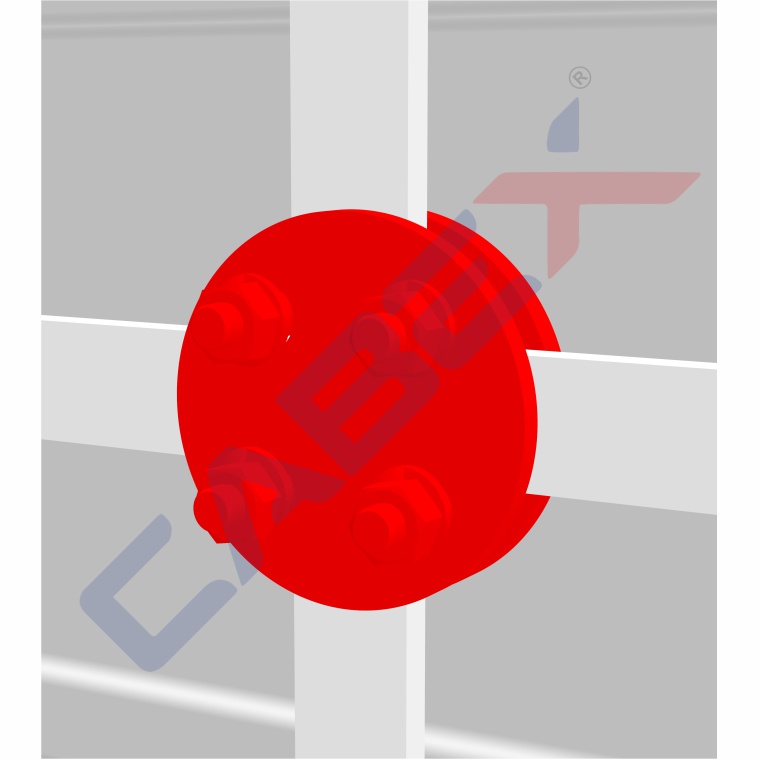

These clamps are used to form a disconnecting joint between the down conductor and earthing system. There are two wall fixing holes on the bottom plate.
For use with Copper Tapes

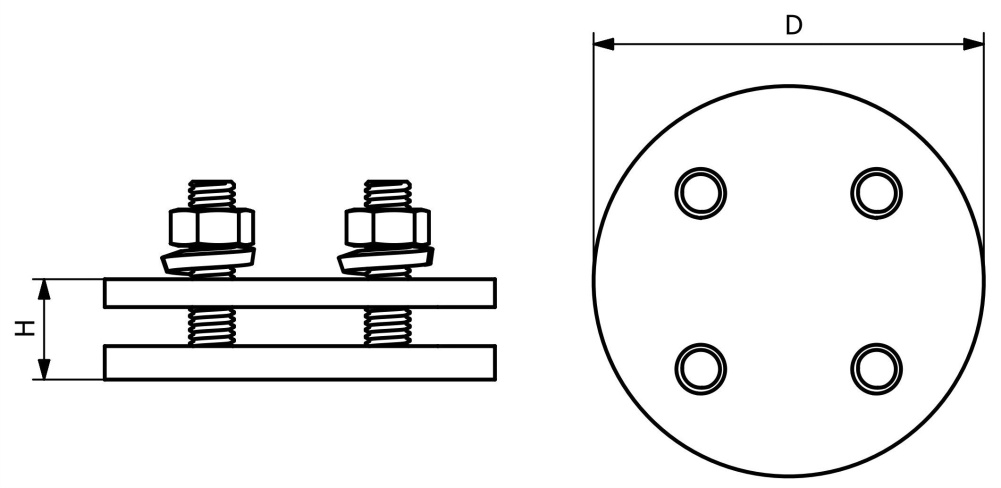

| Conductor Size (mm) | D (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|
| 26 x 15 | 70 | 38 | 0.40 | PTTC2503 |
Material : High Copper Alloy
For use with Aluminium Tapes
| Conductor Size (mm) | D (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|
| 26 x 15 | 70 | 38 | 0.10 | PTTA2503 |
