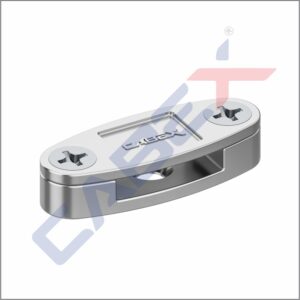

METALLIC DC CLIPS
Description

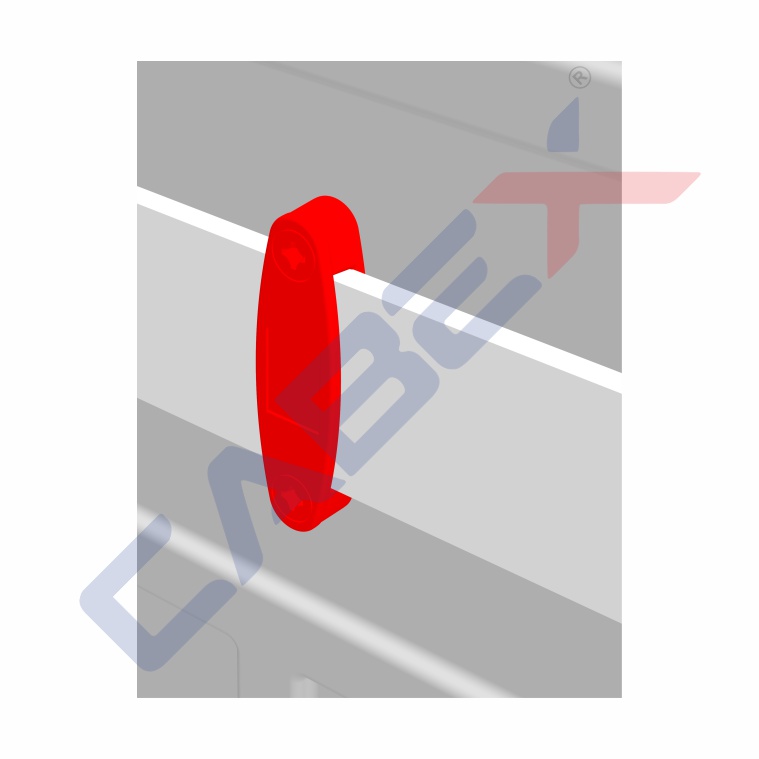

Used to secure the flat tape conductor to the building surface.
For use with Bare Copper Tapes

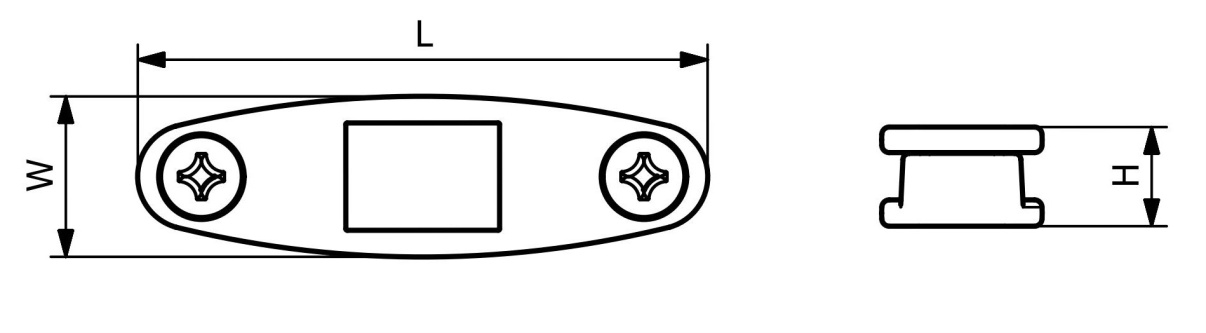

| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 20 x 3 | 50 | 21 | 10 | 0.06 | DCB2003 |
| 25 x 3 | 51 | 21 | 10 | 0.05 | DCB2503 |
| 25 x 4 | 51 | 21 | 11 | 0.05 | DCB2504 |
| 25 x 6 | 51 | 21 | 12 | 0.05 | DCB2506 |
| 30 x 2 | 56 | 21 | 9 | 0.05 | DCB3002 |
| 30 x 5 | 56 | 21 | 12 | 0.06 | DCB3005 |
| 31 x 3 | 60 | 21 | 10 | 0.07 | DCB3103 |
| 31 x 4 | 56 | 21 | 11 | 0.07 | DCB3104 |
| 31 x 6 | 56 | 21 | 12 | 0.06 | DCB3106 |
| 38 x 3 | 69 | 21 | 10 | 0.06 | DCB3803 |
| 38 x 5 | 64 | 21 | 12 | 0.09 | DCB3805 |
| 38 x 6 | 69 | 21 | 12 | 0.08 | DCB3806 |
| 40 x 3 | 70 | 21 | 10 | 0.07 | DCB4003 |
| 40 x 4 | 69 | 21 | 11 | 0.07 | DCB4004 |
| 40 x 5 | 69 | 21 | 12 | 0.07 | DCB4005 |
| 40 x 6 | 69 | 21 | 12 | 0.08 | DCB4006 |
| 50 x 3 | 76 | 21 | 10 | 0.06 | DCB5003 |
| 50 x 4 | 76 | 21 | 11 | 0.09 | DCB5004 |
| 50 x 6 | 76 | 21 | 12 | 0.06 | DCB5006 |
| 50 x 8 | 76 | 21 | 14 | 0.08 | DCB5008 |
| 60 x 5 | 90 | 21 | 11 | 0.10 | DCB6005 |
| 63 x 10 | 102 | 25 | 16 | 0.13 | DCB6310 |
| 70 x 5 | 110 | 25 | 13 | 0.14 | DCB7005 |
| 75 x 6 | 110 | 25 | 14 | 0.14 | DCB7506 |
| 80 x 5 | 110 | 25 | 11 | 0.14 | DCB8005 |
| 80 x 6 | 110 | 25 | 14 | 0.14 | DCB8006 |
Material : High Copper Alloy
BS EN 62561-4
Tightening Torque 6 Nm
For use with PVC Covered Copper Tapes
| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 25 x 3 | 56 | 21 | 12 | 0.06 | DCB2503 P |
| 25 x 6 | 56 | 21 | 15 | 0.07 | DCB2506 P |
| 50 x 6 | 90 | 25 | 16 | 0.13 | DCB5006 P |
Material : High Copper Alloy
For use with Bare Aluminium Tapes
| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 25 x 3 | 52 | 21 | 10 | 0.02 | DCA2503 |
| 25 x 6 | 50 | 21 | 13 | 0.03 | DCA2506 |
| 50 x 6 | 76 | 21 | 12 | 0.03 | DCA5006 |
| 60 x 6 | 90 | 21 | 17 | 0.05 | DCA6006 |
Material : Aluminium
For use with PVC Covered Aluminium Tapes
| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 25 x 3 | 55 | 20 | 20 | 0.03 | DCA2503 P |
| 50 x 6 | 85 | 20 | 23 | 0.04 | DCA5006 P |
Material : Aluminium
For use with Lead Covered Copper Tapes
| Conductor Size (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 25 x 3 | 60 | 20 | 14 | 0.08 | DCB2503 L |
