LIGHT DUTY AIR ROD SADDLES
Description
These Saddles are used to support air rods on flat roof surfaces.
For use with Copper Air Rods

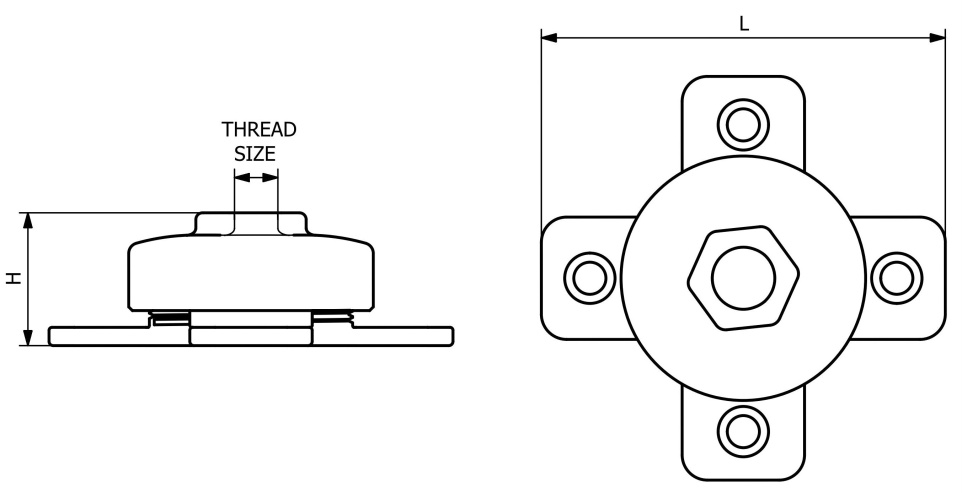

| Thread Size | Conductor Size (mm) | L (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| M16 | 25 x 3 | 101 | 37 | 0.22 | ATBC16 |
| M20 | 25 x 3 | 101 | 37 | 0.43 | ATBC20 |
Material : High Copper Alloy
For use with Aluminium Air Rods
| Thread Size | Conductor Size (mm) | L (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| M16 | 25 x 3 | 101 | 37 | 0.15 | ATBA16 |
