GLAZING BAR HOLDFASTS
Description
The range of Glazing Bar Holdfasts are used with the appropriate size of metallic or non-metallic conductor fixing. Glazing Bar Holdfast is assembled with a fixing screw for use with a metallic or non-metallic DC clip.
For use with Copper Tapes

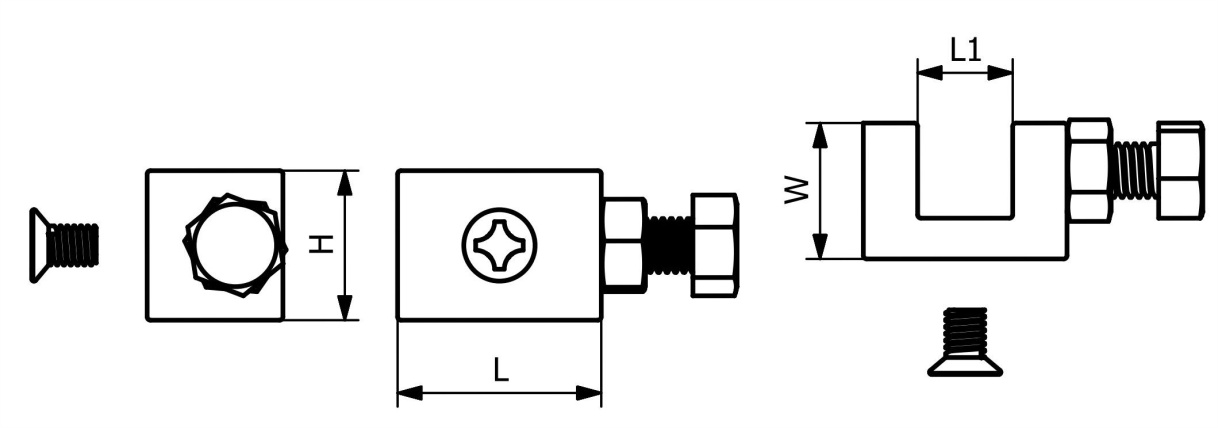

| L (mm) | L1 (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 30 | 14 | 22 | 20 | 0.12 | GBC2503 |
Material : High Copper Alloy
For use with Aluminium Tapes
| L (mm) | L1 (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 30 | 14 | 22 | 20 | 0.04 | GBA2503 |
