FLAT AIR ROD SADDLES
Description

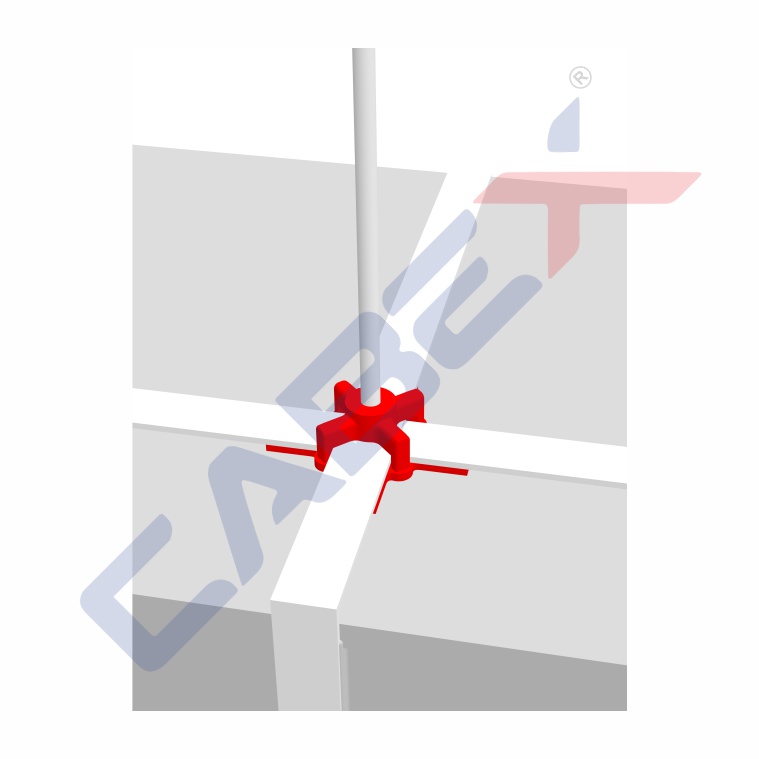

These Saddles are used to support air rods on flat roof surfaces.
For use with Copper Air Rods

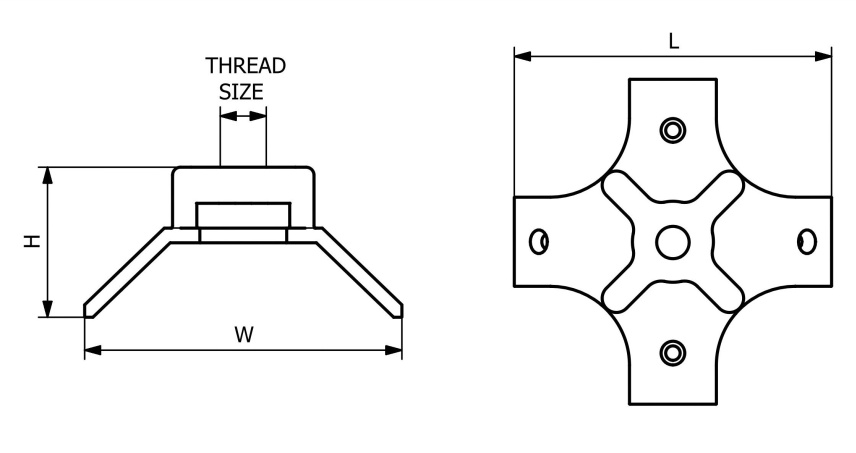

| Thread Size | Conductor Size (mm) | L (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| M16 | 25 x 3 | 137 | 40 | 0.60 | ATBFC16 |
Material : High Copper Alloy
For use with Aluminium Air Rods
| Thread Size | Conductor Size (mm) | L (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| M16 | 25 x 3 | 137 | 40 | 0.20 | ATBFA16 |
