ADHESIVE DC CLIPS
Description
These clips are suitable for use on surfaces such as glass, marble, single ply roof, rubber, painted metal and other similar surfaces. These clips are not recommended for use on porous surafaces such as concrete, wood or brick.
For use with Bare Copper or Aluminium Tapes

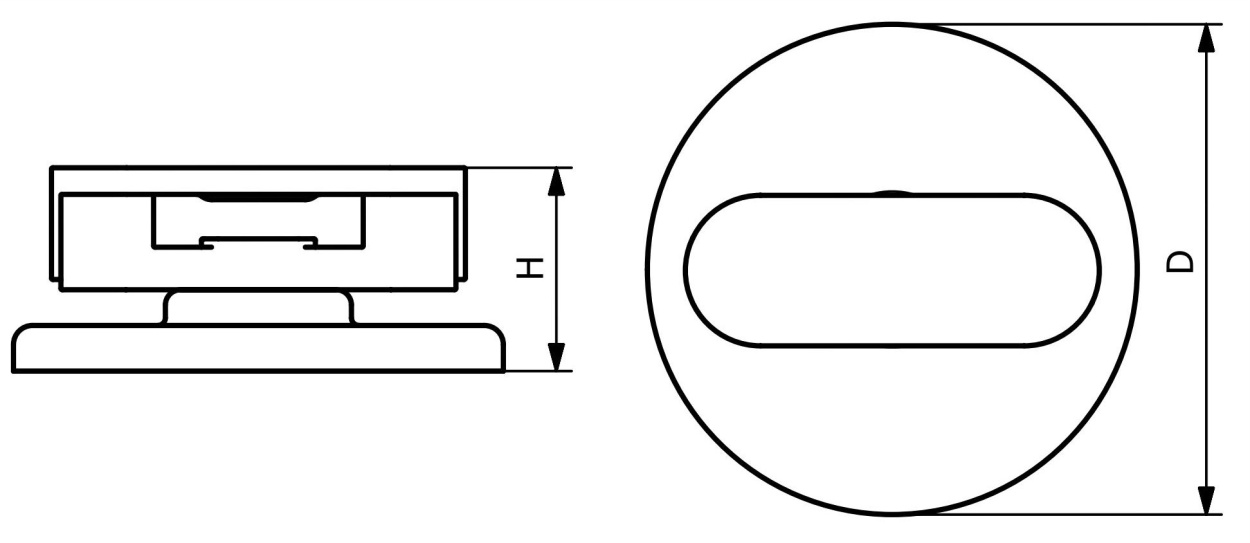

| Conductor Size (mm) | D (mm) | H (mm) | Clip Colour | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 25 x 3 | 63 | 23 | BLACK | 0.03 | DCAD2503 BK |
| 25 x 3 | 63 | 23 | WHITE | 0.03 | DCAD2503 WE |
| 25 x 3 | 63 | 23 | GREY | 0.03 | DCAD2503 GY |
Material : Polypropylene base with Polypropylene clip
For use with PVC Covered Copper or Aluminium Tapes
| Conductor Size (mm) | D (mm) | H (mm) | Clip Colour | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 25 x 3 | 63 | 23 | BROWN | 0.03 | DCAD2503 BN P |
| 25 x 3 | 63 | 23 | BLACK | 0.03 | DCAD2503 BK P |
| 25 x 3 | 63 | 23 | GREY | 0.03 | DCAD2503 GY P |
| 25 x 3 | 63 | 23 | STONE | 0.03 | DCAD2503 SE P |
| 25 x 3 | 63 | 23 | WHITE | 0.03 | DCAD2503 WE P |
