Wipping Gland
Material Brass
Finish Natural

WIPPING GLAND & FITINGS

Description

Used to facilitate the termination of high voltage power cables. Used in dry indoor and outdoor conditions. Cabex can supply standard stock or customised brass wiping glands to client specification.

Gland Size X & Y

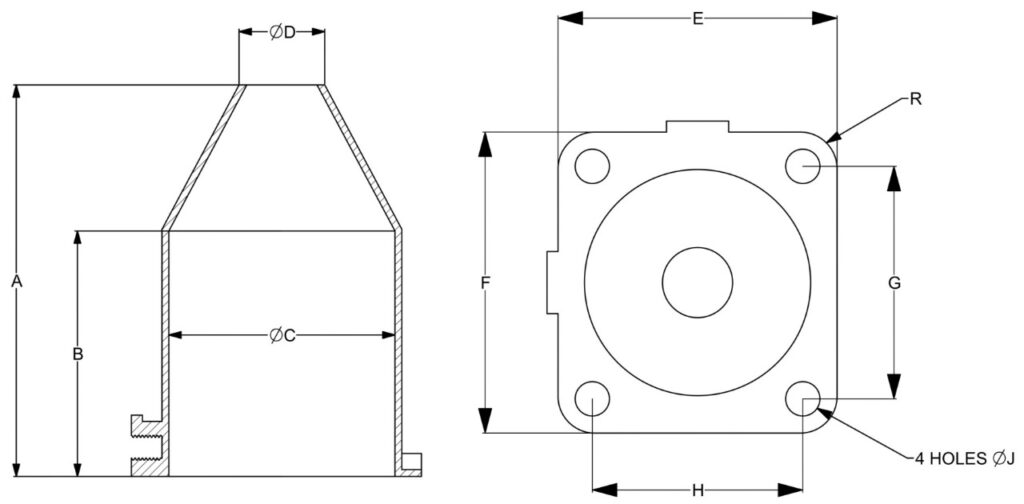

Wipping Gland Selection Table
Gland Size Dia over metal sheath of cable Dimension in (mm)
(mm) A B ∅C ∅D E F G H ∅J R
X 12 to 51 137 90 60 19 90 90 66 66 12 12
Y 25 to 78 155 95 89 32 114 123 95 86 14 14
Z 25 to 94 195 140 108 32 190 – – – 14 –

FITTINGS FOR WIPPING GLAND

Insulating Plate
Material Brass
Finish Natural

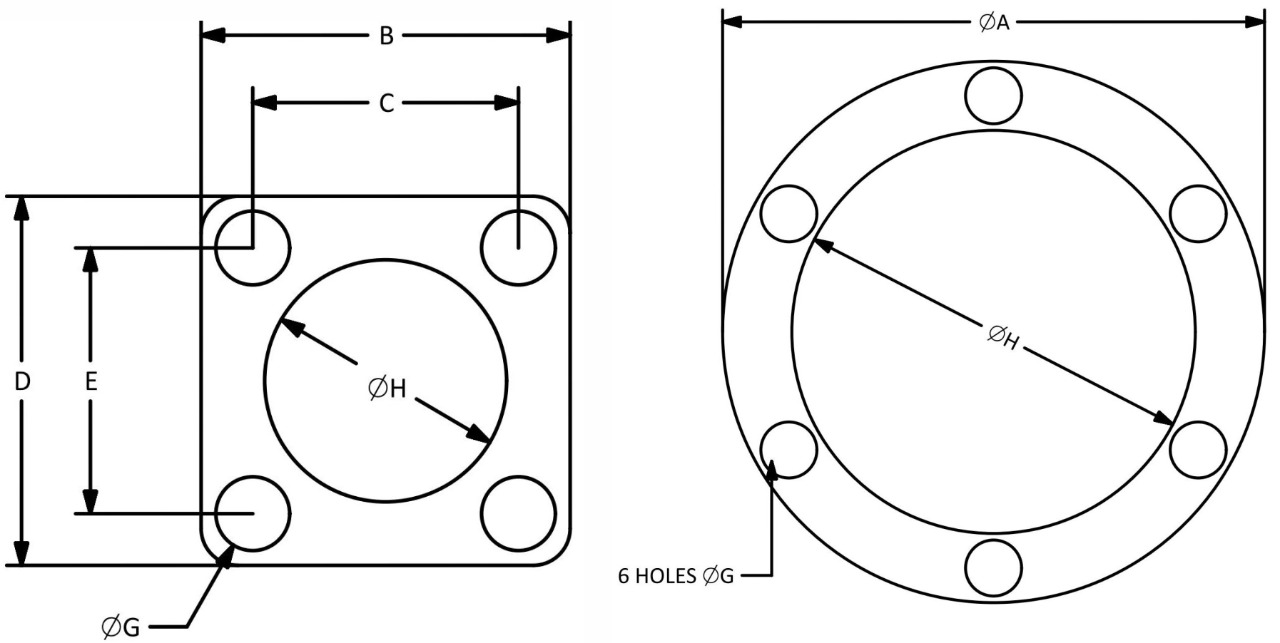

Insulating Plate Selection Table
Insulating Plate Dimension in (mm)
∅A B C D E ∅G ∅H
PX – 90 66 19 90 14 60
PY – 114 86 32 114 16 90
PZ 190 32 190 16 108
Insulating Bush
Material Neoprene
Armour Clamp
Material M.S.Strip
Finish Electro Zinc Plated

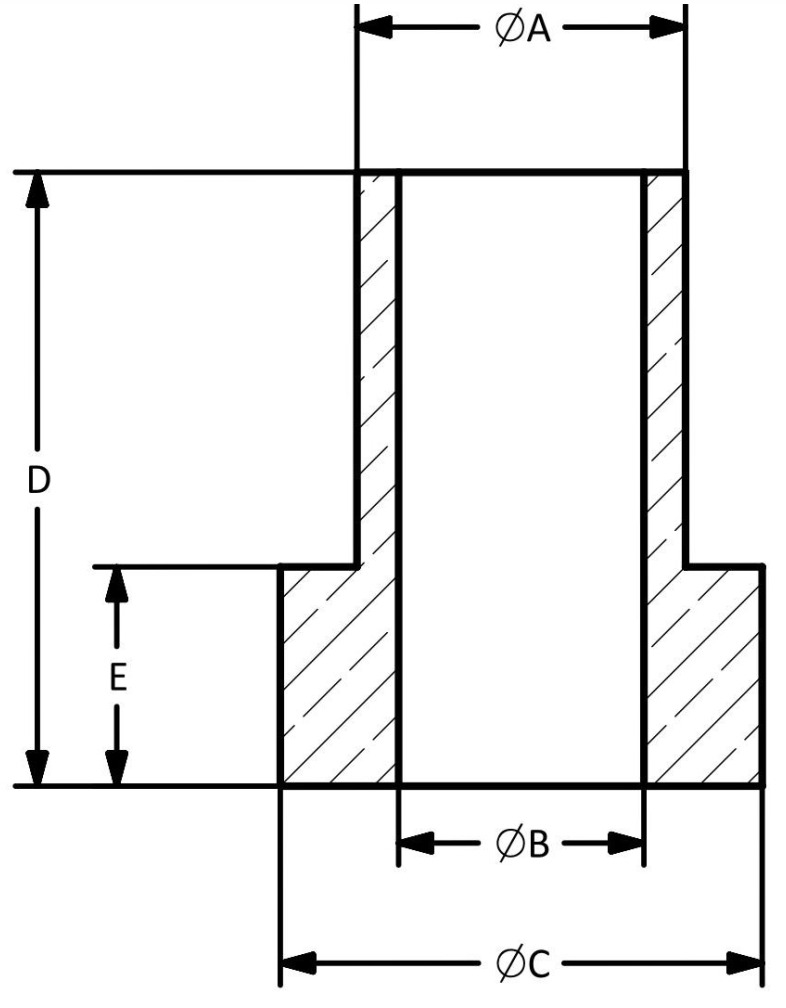

Insulating Bush Selection Table
Insulating Bush Dimension in (mm)
∅A ∅B ∅C D E
A 15 11.20 22 28 10
B 18 14.00 28 28 10
C 18 14.00 28 28 10

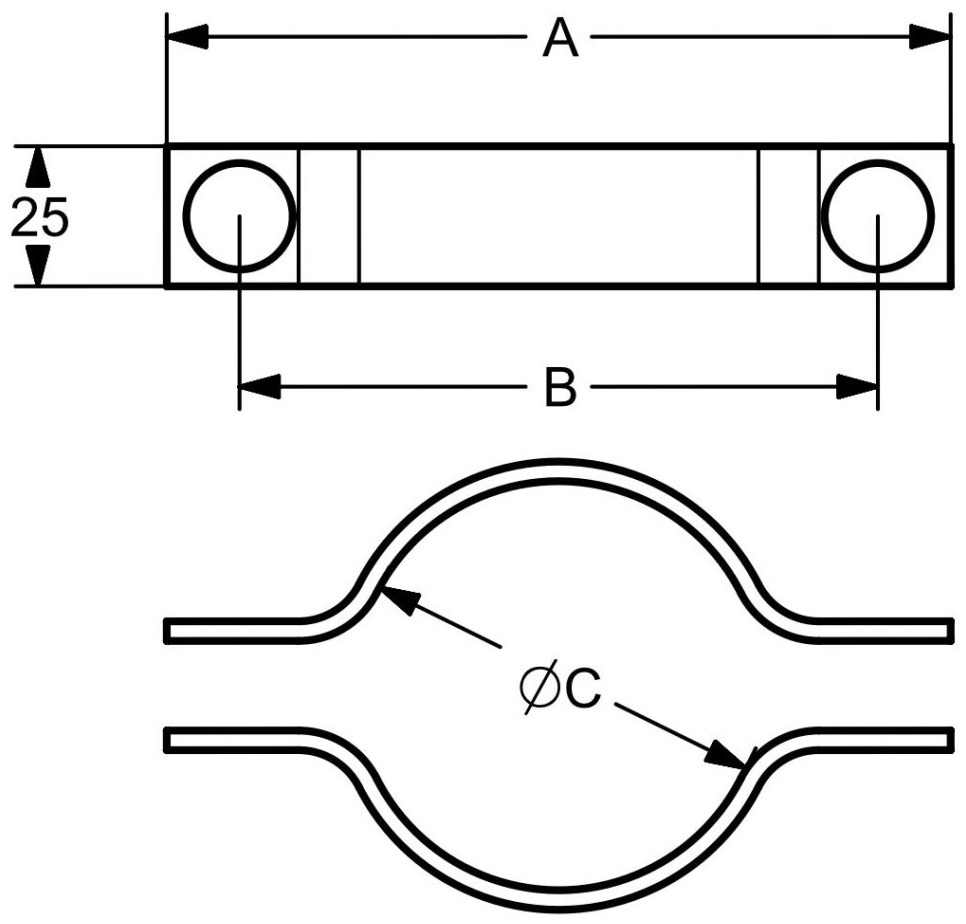

Armour Clamp Selection Table
Gland Size Dimension in (mm)
A B ∅C
X 140 108 73
Y 175 145 103
Z 190 160 123

Selection Of Gland With Fittings
Gland Size Insulating Plate Insulating Bush
X PX A
Y PY B
Z PZ C
