A2 INDUSTRIAL CABLE GLAND
Description
A2 type Industrial Cable Gland for Indoor & Outdoor use with all types of Unarmoured & may be for Braided cable (where termination facility is available inside the enclosure), providing Mechanical Cable Retention & an Environmental Seal on the cable Outer Sheath.
| Technical Data | |
|---|---|
| Type | A2 (Industrial) |
| Design Specification | BS 6121: Part 1:1989, IEC 62444 : 2010 & EN 62444 : 2013 |
| Mechanical Classification** | Retention = Class B, Impact = Level 8 |
| Electrical Classification** | Category A |
| Enclosure Protection | IK10 to IEC 62262 (20 Joule) Brass & Stainless Steel Only |
| Certificate | WIP |
| Operating Temperature | -40°C to + 110°C / Optional -60oC to + 180oC |
| Ingress Protection Rating | IP 66,(IP 67, IP 68*** also available) |
| Standard Gland Material | Brass (BS EN 12164/ Grade CuZn39Pb3) |
| Seal Material | Thermoset Elastomer |
| Standard Thread | ISO Metric/NPT |
| Cable Type | Unarmoured & Braided |
| Sealing Technique | Inner Displacement Seal |
| Sealing Area | Cable Outer Sheath |
| Optional Thread | BSP, BSPT, PG, Imperial |
| Optional Gland Material | Brass Nickel Plated, Brass Electroless Nickel Plated, Stainless Steel, Aluminium |
| Optional Accessories | Adaptor, Reducer, Earth Tag, Lock Nut, Entry Thread Nylon & Fiber Washer, Serrated Washer, Shroud |
| Gland Kits available | 1 Cable Gland, 1 Lock Nut, 1 Nylon IP Washer, 1 PVC Shroud. |
**Mechanical & Electrical Classification applied as per IEC/EN 62444
***IP 68 : Tested at 30m depth for 7 days (Alternate depth & duration can be provided upon request)
A2 Industrial Cable Gland Selection Table |
|||||||||
|---|---|---|---|---|---|---|---|---|---|

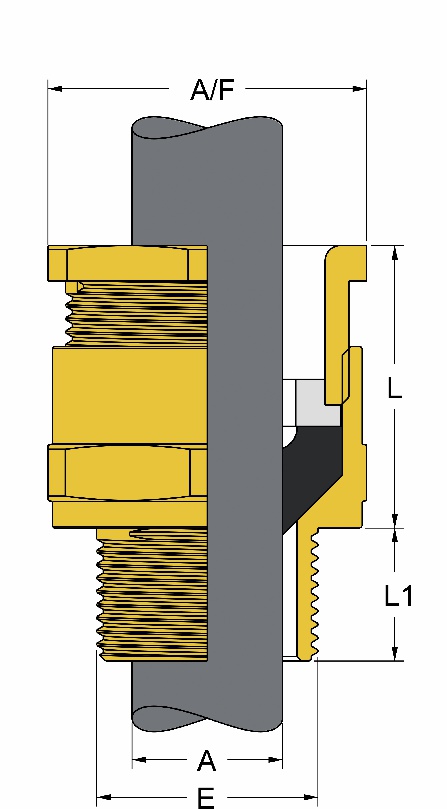

Gland Dimensions |
Cable Dimensions |
||||||||
| Cable Gland Size | Entry Thread E | Minimum Thread Length | Maximum Length | Across Flats | Across Corners | Overall Cable Diameter | |||
| Standard | Option | L1 | L | AF | AC | A | |||
| Metric | NPT* | NPT* | Metric | Max | Max | Max | Min | Max | |
| 20S/16 | M20 | 1/2″ | 3/4″ | 12.00 | 25.50 | 24.00 | 26.40 | 3.10 | 8.80 |
| 20S | M20 | 1/2″ | 3/4″ | 12.00 | 25.50 | 24.00 | 26.40 | 6.10 | 11.80 |
| 20 | M20 | 1/2″ | 3/4″ | 12.00 | 27.30 | 27.00 | 29.70 | 8.50 | 14.00 |
| 25S | M25 | 3/4″ | 1″ | 12.00 | 29.00 | 31.00 | 34.10 | 10.00 | 16.00 |
| 25 | M25 | 3/4″ | 1″ | 12.00 | 35.70 | 36.00 | 39.50 | 14.00 | 20.00 |
| 32 | M32 | 1″ | 1-1/4″ | 12.00 | 35.00 | 41.00 | 45.00 | 17.00 | 26.40 |
| 40 | M40 | 1-1/4″ | 1-1/2″ | 15.00 | 34.80 | 50.00 | 50.00 | 23.50 | 32.30 |
| 50S | M50 | 1-1/2″ | 2″ | 15.00 | 33.00 | 55.00 | 55.00 | 31.00 | 38.50 |
| 50 | M50 | 2″ | 2-1/2″ | 15.00 | 36.00 | 60.00 | 60.00 | 35.50 | 44.00 |
| 63S | M63 | 2″ | 2-1/2″ | 15.00 | 34.00 | 70.00 | 77.00 | 41.40 | 50.00 |
| 63 | M63 | 2-1/2″ | 3″ | 15.00 | 36.00 | 75.00 | 82.50 | 47.00 | 56.20 |
| 75S | M75 | 2-1/2″ | 3″ | 15.00 | 33.50 | 80.00 | 88.80 | 54.00 | 62.10 |
| 75 | M75 | 3″ | 3-1/2″ | 15.00 | 39.00 | 85.00 | 93.50 | 60.00 | 68.30 |
| 90 | M90 | 3-1/2″ | 4″ | 20.00 | 58.50 | 108.00 | 118.00 | 66.60 | 80.00 |
| All dimensions are in millimetres (Except * where dimensions are in inches) | |||||||||
