EX STOPPING PLUG (TAMPERPROOF - INTERNAL & NON - TAMPERPROOF EXTERNAL)
Description

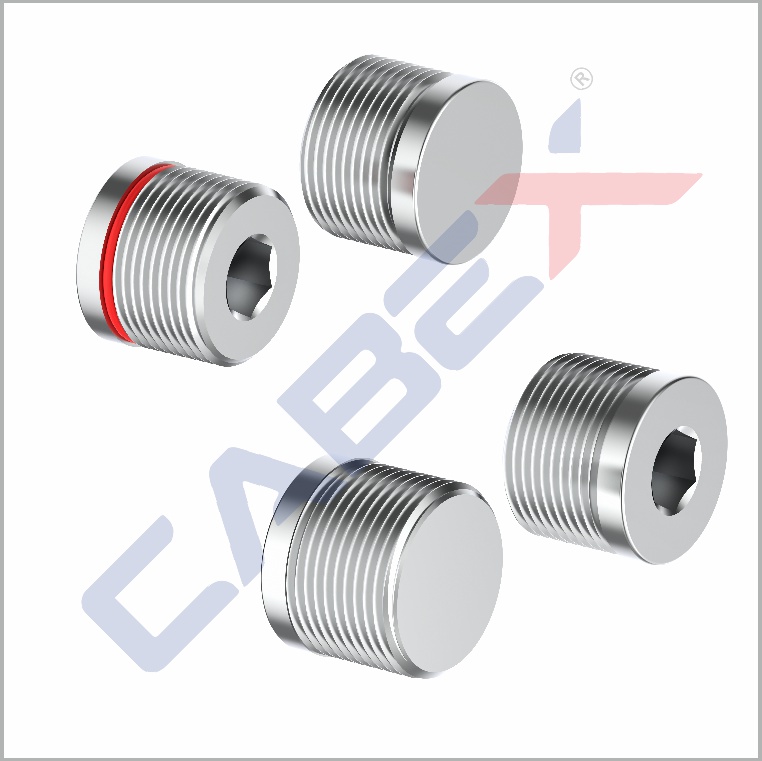

Ex Stopping Plug is designed to provide a permanent or temporary means of blanking unused cable entry holes in Flameproof, Increased Safety & Dust Ignition Protection Enclosures, enabling the equipment to be safely deployed in the hazardous area. These plugs are available with both Internal and External Allen Key facility.
| Technical Data | |
|---|---|
| Type | Ex Stopping Plug (Tamperproof – Internal / Non – Tamperproof External) |
| Design Specification | BS 6121: Part 1:1989, IEC 62444 : 2010 & EN 62444 : 2013 |
| Enclosure Protection | IK10 to IEC 62262 (20 Joule) Brass & Stainless Steel Only |
| Standard Size | M16 to M100 (1/2″ NPT to 4″ NPT) |
| Optional Size | Other sizes avilable on request |
| Operating Temperature | -55°C to + 175°C*** |
| Ingress Protection Rating | IP 66 / IP 68** when fitted with ‘O’ Ring |
| Standard Material | Brass (BS EN 12164 / Grade CuZn39Pb3) |
| Optional Material | Brass Nickel Plated, Stainless Steel (SS316 & SS316L). |
| Standard Thread | ISO Metric / NPT |
| Global Certification | |
| Compliance Standards | EN / IEC 60079-0, 1, 7, 31 |
| ATEX Certificate | DNV 22ATEX16409X |
| Code of Protection |  | M2 || 2G 1D  2460, IP 66 / IP 68 |
| IECEX Certificate | IECEx DNV 22.0004X |
| Code of Protection | Ex db | Mb Ex eb | Mb, Ex db || C Gb Ex eb || C Gb, Ex ta |||C Da |
| EAC Certificate | Applied for Certificate |
| DNV GL Certificate | Applied for Certificate |
| ABS Certificate | Applied for Certificate |
| PESO Certificate | A/P/HQ/GJ/104/6054 (P568143) |
***When fitted with Silicon O Ring
**IP 68 : Tested at 30m depth for 7 days (Alternate depth & duration can be provided upon request)
Ex Stopping Plug (Tamperproof – Internal / Non – Tamperproof External) Selection Table |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| METRIC | NPT | ||||||||||||

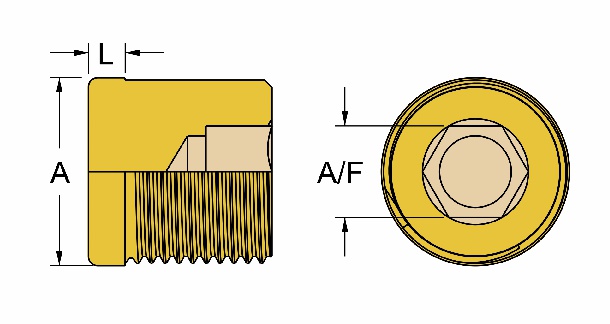

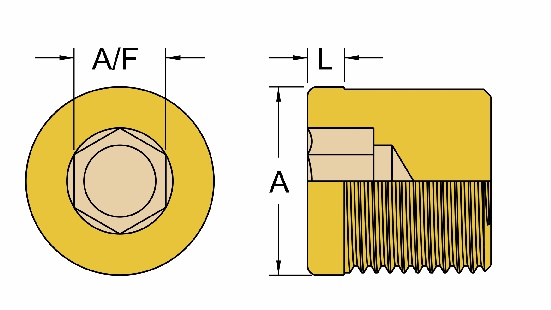

| Thread Size | Head Length | Head Diameter | Allen Key Size | Thread Size* | Head Length | Head Diameter | Allen Key Size | ||||||
| L | A | A/F | L | A | A/F | ||||||||
| M16 X 1.5 | 4.00 | 16.50 | 8.00 | 1/2″ | 4.00 | 22.00 | 10.00 | ||||||
| M20 X 1.5 | 4.00 | 20.50 | 10.00 | 3/4″ | 4.00 | 27.50 | 10.00 | ||||||
| M25 X 1.5 | 4.00 | 25.50 | 10.00 | 1″ | 4.00 | 34.00 | 10.00 | ||||||
| M32 X 1.5 | 4.00 | 32.50 | 10.00 | 1-1/4″ | 4.00 | 43.00 | 10.00 | ||||||
| M40 X 1.5 | 4.00 | 40.50 | 10.00 | 1-1/2″ | 4.00 | 49.00 | 10.00 | ||||||
| M50 X 1.5 | 4.00 | 50.50 | 10.00 | 2″ | 4.00 | 60.50 | 10.00 | ||||||
| M63 X 1.5 | 4.00 | 63.50 | 10.00 | 2-1/2″ | 4.00 | 74.00 | 10.00 | ||||||
| M75 X 1.5 | 4.00 | 75.50 | 10.00 | 3″ | 4.00 | 89.50 | 12.00 | ||||||
| M80 X 2.0 | 4.00 | 80.50 | 12.00 | 3-1/2″ | 4.00 | 103.00 | 12.00 | ||||||
| M85 X 2.0 | 4.00 | 85.50 | 12.00 | 4″ | 4.00 | 115.00 | 12.00 | ||||||
| M90 X 2.0 | 4.00 | 90.50 | 12.00 | – | – | – | – | ||||||
| M100 X 2.0 | 4.00 | 100.50 | 12.00 | – | – | – | – | ||||||
| All dimensions are in millimetres (Except * where dimensions are in inches) | |||||||||||||
