PARALLEL GROOVE CLAMPS
Description
This Clamp is designed from high strength and corrosion-resistant Copper Alloy used for Stranded Copper Cable connections.

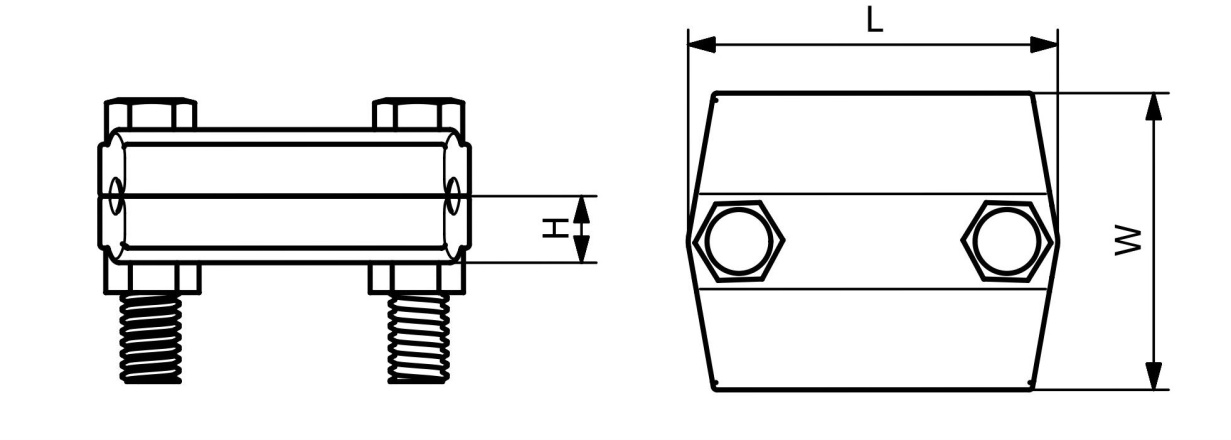

| Set Screw | Conductor Range (mm)2 | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|---|
| MB x 35mm | 25 to 70 | 50 | 40 | 7.0 | 0.38 | PGC070 |
| M10 x 45mm | 70 to 95 | 54 | 45 | 8.5 | 0.46 | P3C095 |
| M10 x 55mm | 95 to 185 | 65 | 57 | 12,5 | 0.55 | PGC185 |
| M10 x 55mm | 185 to 240 | 78 | 71 | 14 | 0.66 | PGC240 |
| M10 x 60mm | 240 to 300 | 94 | 85 | 16 | 0.78 | PGC300 |
