THREADED COUPLER

Description

Threaded Couplings are used for joining copper bond threaded earth rods together. They are made from high copper content alloy that ensures excellent corrosion resistance and high strength & also protects the earth rod threads during installation with the Threaded Driving Bolt.

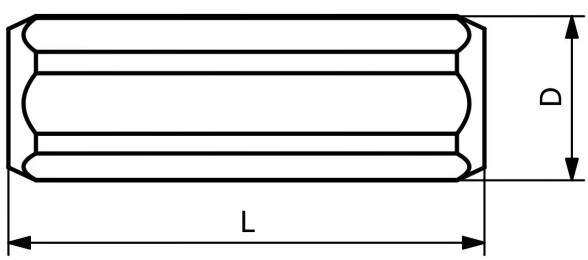

Rod sizeLength L (mm)Diameter D (mm)Unit Weight (Kg)Code
1/2″68180.07ERCO12
5/8″68200.12ERCO16
3/4″78250.17ERCO20
1″100310.25ERCO25

Material : High Copper Alloy

Rod sizeLength L (mm)Diameter D (mm)Unit Weight (Kg)Code
5/8″80210.1ERCO16 S

Material : Silicon Bronze

  BS EN 62561-1 Class H
  Tightening Torque 40 Nm
