INSPECTION HOUSING EARTH BARS (HEAVY DUTY & LIGHT DUTY)
Description

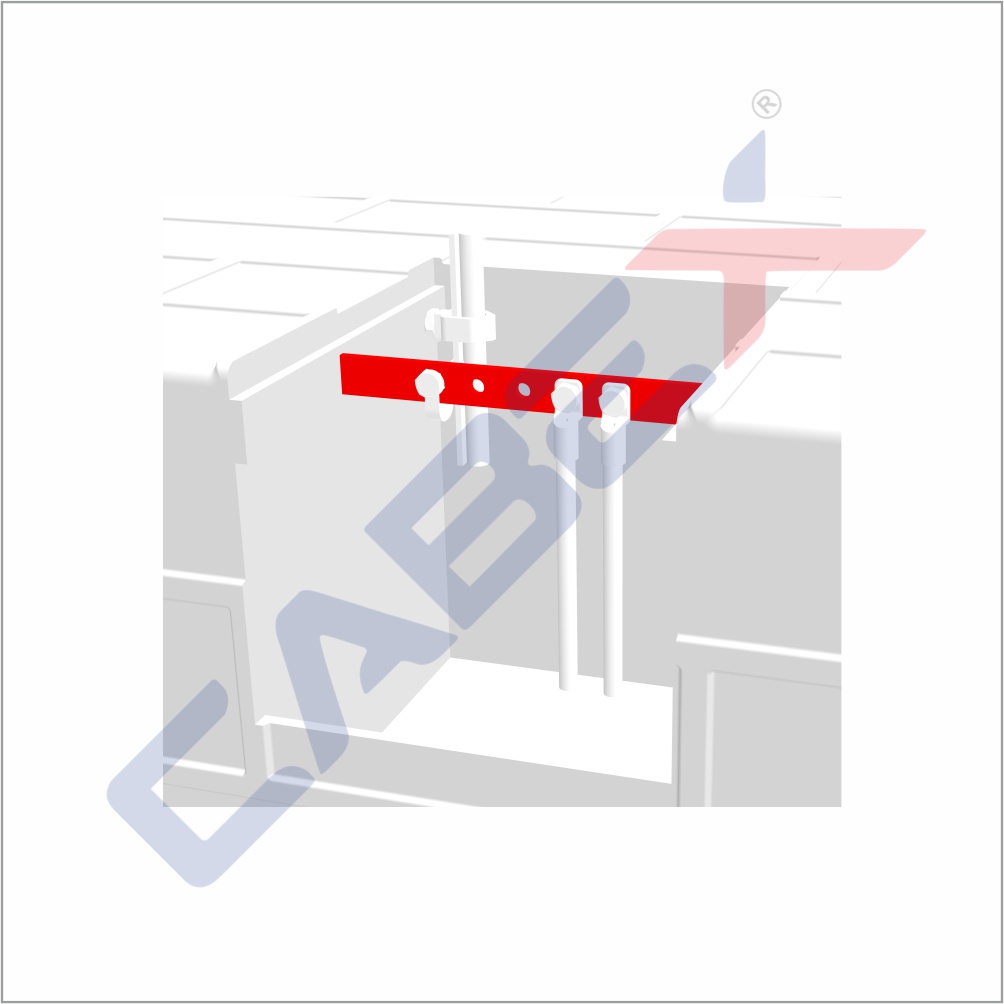

This Earth Bars fit into the hole provided in the Heavy Duty/Light Duty Earth Inspection Housings & are used when multiple connections to the earth rod are required.
For Heavy Duty Earth Inspection Housing
| # Holes | Hole Dia (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|---|
| 5 | 11 | 203 | 25 | 6 | 0.24 | EHBC2035 |
| 7 | 11 | 203 | 25 | 6 | 0.22 | EHBC2037 |
For Light Duty Earth Inspection Housing
| # Holes | Hole Dia (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|---|
| 5 | 11 | 250 | 30 | 6 | 0.42 | EHBC2505 |
| 7 | 11 | 250 | 30 | 6 | 0.39 | EHBC2507 |
