INSPECTION HOUSING EARTH BARS (CONCRETE)
Description
This Earth Bars fit into the holoes provided in the concrete Housings & are used when multiple connections to the earth rod are required.
For Heavy Duty Earth Inspection Housing

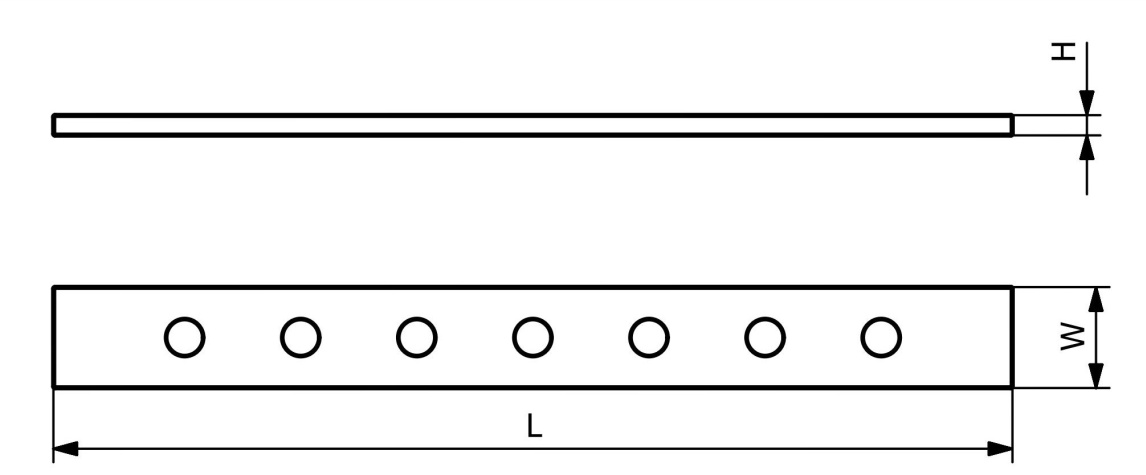

| # Holes | Hole Dia (mm) | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|---|
| 5 | 11 | 285 | 30 | 6 | 0.49 | EHBC2855 |
| 7 | 11 | 285 | 30 | 6 | 0.50 | EHBC2857 |
