DRIVING SPIKE
Description
The Driving Spike enable Solid Copper Earth Rod to be inserted easily into the ground.

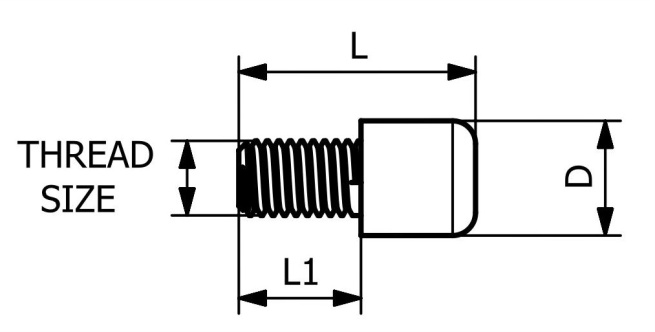

| Thread Size | Length L (mm) | Diameter D (mm) | Length L1 (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| M10 | 42 | 16 | 20 | 0.03 | ERCDS16 |
| M10 | 51 | 20 | 20 | 0.06 | ERCDS20 |
| M12 | 60 | 25 | 25 | 0.10 | ERCDS25 |
