COPPER BOND EARTH ROD (UN-THREADED)
Description
Copper bond Earth Rods provides a low earth resistance to the installer in most economical way. Earth Rods are made by molecularly bonding of 99.99% pure electrolytic Copper onto a low Carbon Steel Core. Earth Rod has highly resistance to corrosion, and because the Steel used has a very high tensile strength, can be driven by power hammer to the great depth. Copper thickness is 254 microns.

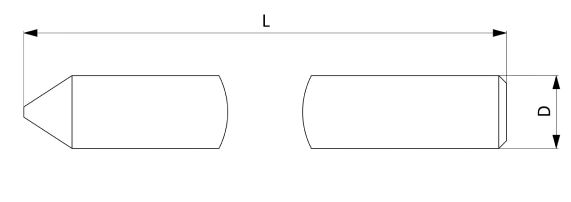

| Rod size | Length L (mm) | Shank D (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|
| 3/8″ | 1200 | 9.5 | 0.73 | ERBU1012 |
| 1/2″ | 1200 | 12.7 | 1.29 | ERBU1212 |
| 1/2″ | 1500 | 12.7 | 1.62 | ERBU1215 |
| 1/2″ | 1800 | 12.7 | 1.94 | ERBU1218 |
| 1/2″ | 2400 | 12.7 | 2.58 | ERBU1224 |
| 5/8″ | 1200 | – | 1.62 | ERBU1612 |
| 5/8″ | 1500 | – | 2.02 | ERBU1615 |
| 5/8″ | 1800 | – | 2.42 | ERBU1618 |
| 5/8″ | 2400 | – | 3.23 | ERBU1624 |
| 5/8″ | 3000 | – | 4.04 | ERBU1630 |
| 3/4″ | 1200 | – | 2.37 | ERBU2012 |
| 3/4″ | 1500 | – | 2.96 | ERBU2015 |
| 3/4″ | 1800 | – | 3.56 | ERBU2018 |
| 3/4″ | 2400 | – | 4.74 | ERBU2024 |
| 3/4″ | 3000 | – | 5.93 | ERBU2030 |
| 1″ | 2400 | 25.4 | 10.32 | ERBU2524 |
| 1″ | 3000 | 25.4 | 12.90 | ERBU2530 |
