TINNED EARTH BARS WITH DOUBLE DISCONNECTING LINKS
Description
When the Earth bar has to be located at an external site, an area that is more aggressive or a location that has higher moisture or humidity then Tinned Earth Bars will be suitable. Tinned copper is a type of copper coated with a thin layer of tin used to provide protection to earth bars against air, oxide & corrosion.
This Earth Bars are mainly used to offer a temporary break in the connection to the earth, allowing the inspection and testing of multiple earth rods and systems while disconnecting from the lightning and earth system.
Recommended to use countersunk wood screws 1-1/2″ No.12 and wall plugs No.12 for fixing
Standard earth bars meet the majority of applications, however where a customer has a specific requirement, we can design and manufacture special earth bars

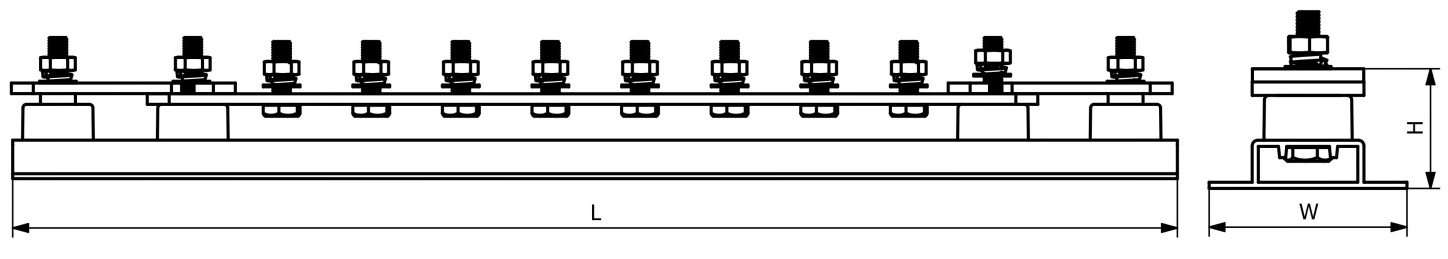

| # Termination | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 2 | 350 | 90 | 60 | 2.10 | EB202T |
| 3 | 400 | 90 | 60 | 2.32 | EB203T |
| 4 | 450 | 90 | 60 | 2.55 | EB204T |
| 6 | 550 | 90 | 60 | 3.10 | EB206T |
| 8 | 650 | 90 | 60 | 3.70 | EB208T |
| 9 | 725 | 90 | 60 | 4.10 | EB209T |
| 10 | 800 | 90 | 60 | 4.50 | EB210T |
| 12 | 900 | 90 | 60 | 5.30 | EB212T |
| 14 | 1000 | 90 | 60 | 6.20 | EB214T |
| 16 | 1100 | 90 | 60 | 7.10 | EB216T |
| 18 | 1250 | 90 | 60 | 8.00 | EB218T |
| 20 | 1400 | 90 | 60 | 8.90 | EB220T |
| 22 | 1450 | 90 | 60 | 10.50 | EB222T |
| 24 | 1550 | 90 | 60 | 10.70 | EB224T |
| 26 | 1700 | 90 | 60 | 11.60 | EB226T |
| 28 | 1800 | 90 | 60 | 12.50 | EB228T |
| 30 | 1950 | 90 | 60 | 13.40 | EB230T |
