TINNED EARTH BARS
Description
When the Earth bar has to be located at an external site, an area that is more aggressive or a location that has higher moisture or humidity then Tinned Earth Bars will be suitable. Tinned copper is a type of copper coated with a thin layer of tin used to provide protection to earth bars against air, oxide & corrosion.
Recommended to use countersunk wood screws 1-1/2″ No.12 and wall plugs No.12 for fixing
Standard earth bars meet the majority of applications, however where a customer has a specific requirement, we can design and manufacture special earth bars

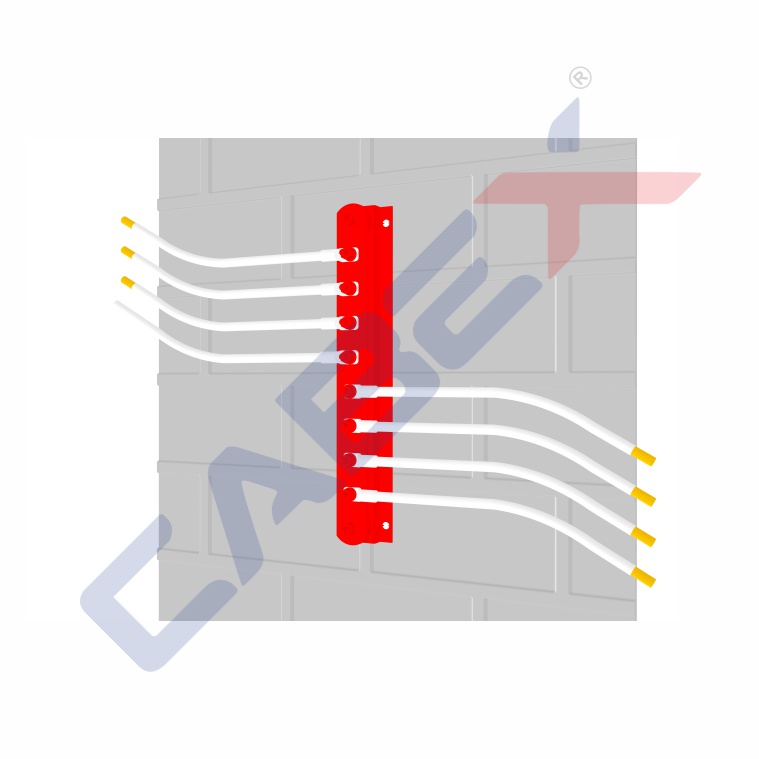

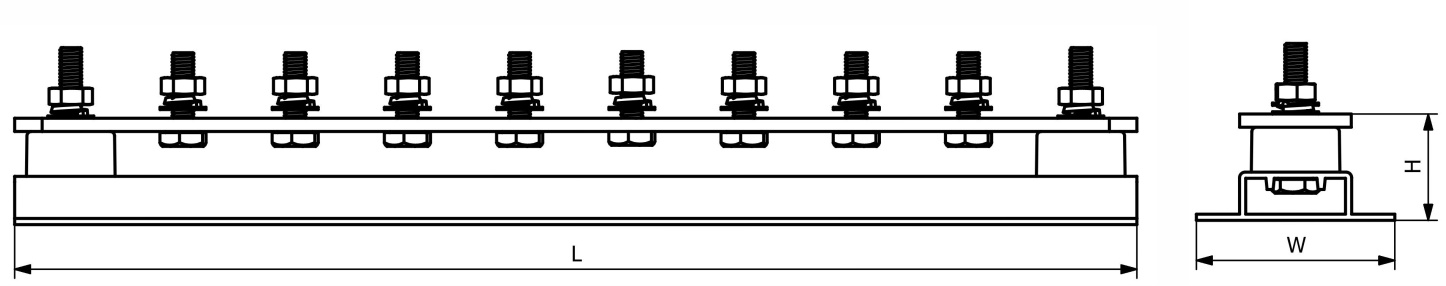

| # Termination | L (mm) | W (mm) | H (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|---|
| 2 | 200 | 90 | 60 | 1.00 | EB002T |
| 3 | 250 | 90 | 60 | 1.22 | EB003T |
| 4 | 300 | 90 | 60 | 1.45 | EB004T |
| 6 | 400 | 90 | 60 | 2.00 | EB006T |
| 8 | 500 | 90 | 60 | 2.30 | EB008T |
| 9 | 600 | 90 | 60 | 2.75 | EB009T |
| 10 | 650 | 90 | 60 | 3.20 | EB010T |
| 12 | 750 | 90 | 60 | 4.00 | EB012T |
| 14 | 850 | 90 | 60 | 4.90 | EB014T |
| 16 | 950 | 90 | 60 | 5.80 | EB016T |
| 18 | 1100 | 90 | 60 | 6.70 | EB018T |
| 20 | 1250 | 90 | 60 | 7.60 | EB020T |
| 22 | 1300 | 90 | 60 | 8.50 | EB022T |
| 24 | 1400 | 90 | 60 | 9.40 | EB024T |
| 26 | 1550 | 90 | 60 | 10.30 | EB026T |
| 28 | 1650 | 90 | 60 | 11.20 | EB028T |
| 30 | 1800 | 90 | 60 | 12.10 | EB030T |
