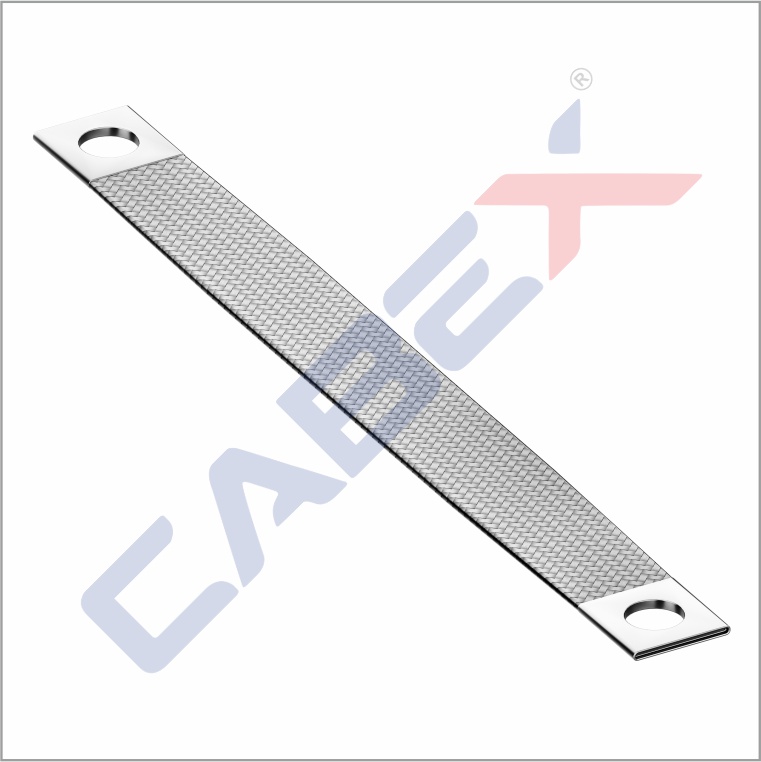

TINNED FLEXIBLE COPPER BRAID BONDS
Description
The various littler wires involving the twist will lead to break under repeated motion and vibration than cable of larger wires. These flexible copper braid bonds are used for bonding metal gates, door, fences etc.
| Size W x H (mm) | Hole Centers L (mm) | Hole Size (mm) | Unit Weight (Kg) | Code |
|---|---|---|---|---|
| 10 x 2 | 100 | 6 | 0.01 | FBT001 |
| 10 x 2 | 200 | 6 | 0.01 | FBT002 |
| 10 x 2 | 300 | 6 | 0.01 | FBT003 |
| 12 x 2 | 100 | 6 | 0.01 | FBT004 |
| 12 x 2 | 200 | 6 | 0.01 | FBT005 |
| 12 x 2 | 300 | 6 | 0.02 | FBT006 |
| 19 x 2.5 | 100 | 10 | 0.01 | FBT007 |
| 19 x 2.5 | 200 | 10 | 0.03 | FBT008 |
| 19 x 2.5 | 300 | 10 | 0.05 | FBT009 |
| 25 x 3 | 100 | 10 | 0.02 | FBT010 |
| 25 x 3 | 200 | 10 | 0.05 | FBT011 |
| 25 x 3 | 300 | 10 | 0.08 | FBT012 |
| 25 x 3 | 400 | 10 | 0.10 | FBT013 |
| 25 x 3.5 | 100 | 11 | 0.05 | FBT014 |
| 25 x 3.5 | 200 | 11 | 0.09 | FBT015 |
| 25 x 3.5 | 300 | 11 | 0.13 | FBT016 |
| 25 x 3.5 | 400 | 11 | 0.16 | FBT017 |
| 30 x 4.5 | 200 | 10 | 0.10 | FBT018 |
| 30 x 4.5 | 400 | 10 | 0.20 | FBT019 |
| 32 x 5 | 200 | 10 | 0.14 | FBT020 |
| 32 x 5 | 400 | 10 | 0.28 | FBT021 |
