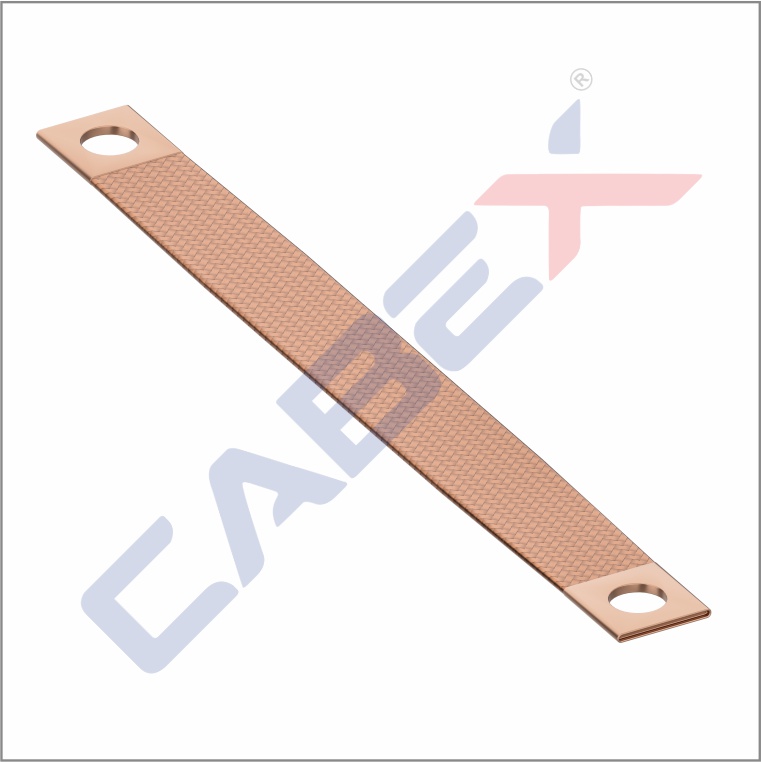

FLEXIBLE COPPER BRAID BONDS

Description

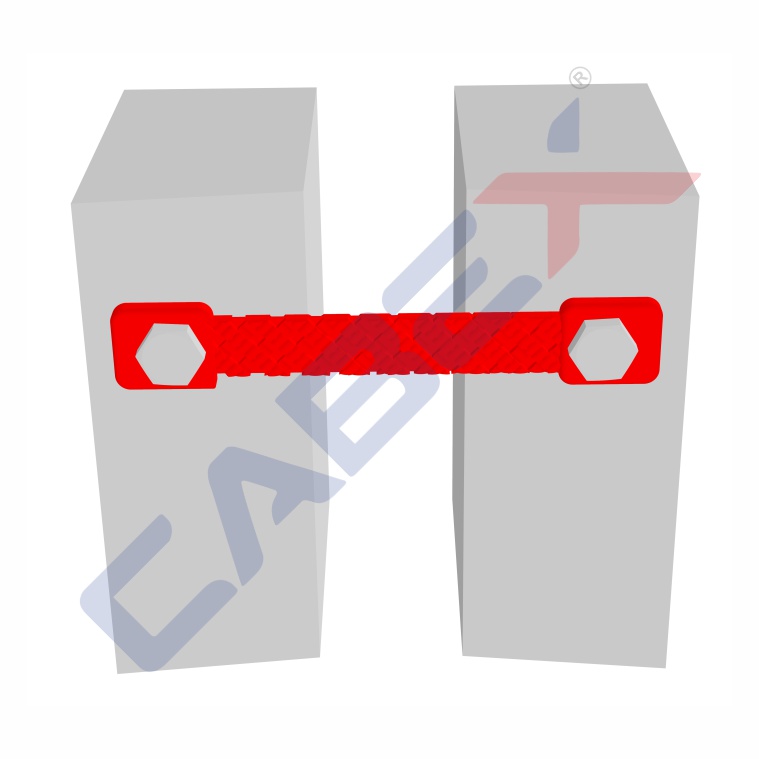

The various littler wires involving the twist will lead to break under repeated motion and vibration than cable of larger wires. These flexible copper braid bonds are used for bonding metal gates, door, fences etc.

Size W x H (mm) Hole Centers L (mm) Hole Size (mm) Unit Weight (Kg) Code
10 x 2 100 6 0.01 FBC001
10 x 2 200 6 0.01 FBC002
10 x 2 300 6 0.01 FBC003
12 x 2 100 6 0.01 FBC004
12 x 2 200 6 0.01 FBC005
12 x 2 300 6 0.02 FBC006
19 x 2.5 100 10 0.01 FBC007
19 x 2.5 200 10 0.03 FBC008
19 x 2.5 300 10 0.05 FBC009
25 X 3 100 10 0.02 FBC010
25 x 3 200 10 0.05 FBC011
25 x 3 300 10 0.08 FBC012
25 X 3 400 10 0.10 FBC013
25 x 3.5 100 11 0.05 FBC014
25 x 3.5 200 11 0.09 FBC015
25 X 3.5 300 11 0.13 FBC016
25 x 3.5 400 11 0.16 FBC017
30 x 4.5 200 10 0.10 FBC018
30 x 4.5 400 10 0.20 FBC019
32 x 5 200 10 0.14 FBC020
32 x 5 400 10 0.28 FBC021

Material : Copper

  BS EN 62561-1- Class H
  Tightening Torque 20 Nm
