TINNED COPPER FLAT BRAIDS
Description
These braids are utilised as flexible earth bonding leads.

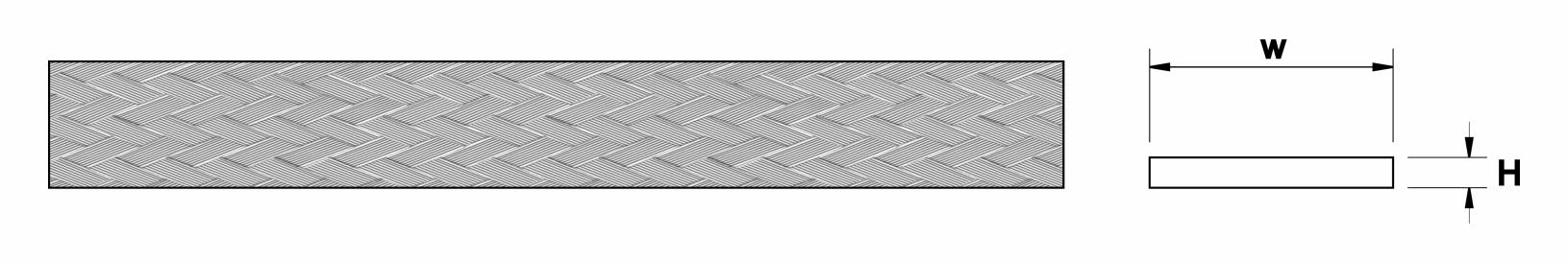

| Nominal Size W x H (mm) | Nominal C.S.A. (mm)2 | Current Rating Amps | Weight Per Metre (Kg) | Standard Coil Size (m) | Code |
|---|---|---|---|---|---|
| 12 x 1.0 | 6 | 66 | 0.06 | 100 | FBT1201 |
| 15 x 1.5 | 10 | 90 | 0.10 | 50 | FBT1515 |
| 19 x 2.5 | 16 | 120 | 0.16 | 50 | FBT1925 |
| 23 x 2.0 | 25 | 160 | 0.25 | 50 | FBT2320 |
| 25 x 3.5 | 35 | 200 | 0.34 | 50 | FBT2535 |
| 30 x 5.0 | 50 | 250 | 0.48 | 50 | FBT3050 |
| 32 x 6.0 | 70 | 300 | 0.63 | 50 | FBT3260 |
| 37 x 6.0 | 95 | 350 | 0.93 | 50 | FBT3760 |
| 45 x 6.0 | 120 | 400 | 1.15 | 50 | FBT4560 |
| 50 x 8.0 | 150 | 500 | 1.45 | 50 | FBT5080 |
