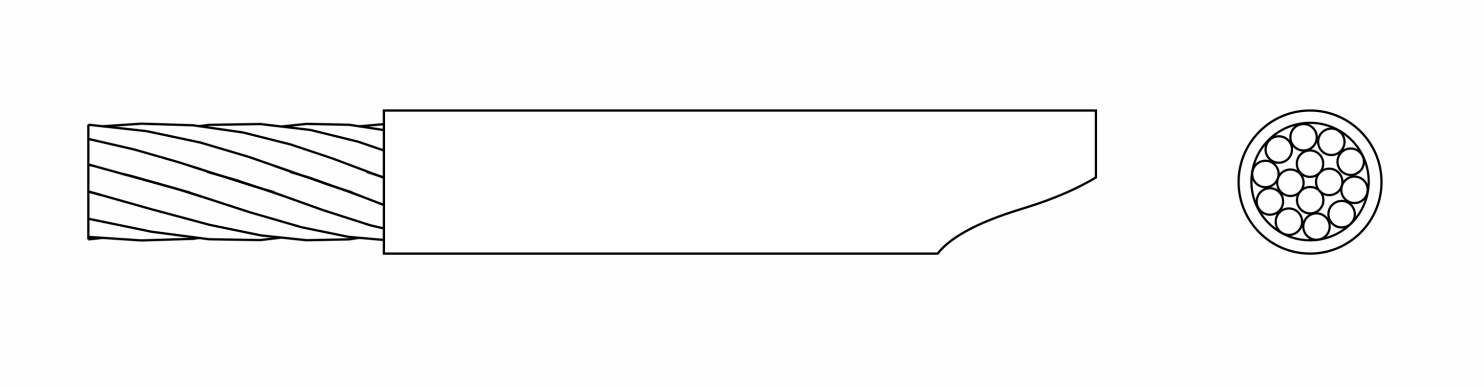

LEAD COVERED STRANDED COPPER CONDUCTORS
Provide protection from accidental damage, vandalism and theft for cables up to 50mm diameter. These guards have flat flanges and are supplied with screw fixing holes for ease of installation.
| C.S.A. (mm)2 | Stranding No. x Ø (mm) | Nominal Diameter (mm) | Weight Per Metre (Kg) | Code |
|---|---|---|---|---|
| 185 | 37 x 2.52 | 21.64 | 2.71 | LCSC185 |
| 240 | 61 x 2.25 | 24.25 | 3.58 | LCSC240 |
| 300 | 61 x 2.52 | 26.58 | 4.49 | LCSC300 |
| 400 | 61 x 2.85 | 29.65 | 5.74 | LCSC400 |
